Wholesales 6v Mini Automatic Foaming Micro Foam Pump With Foam Head
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSFP310-XE
Place of Origin: Guangdong, China
Application: Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
Power Source: Electric
Pressure: Low Pressure
Structure: Peristaltic Pump
Outlet Size: 4.7mm
Voltage: 3V/3.7V/4.5V/6V
Power: 2.2W
Product name: FOAMING PUMP
Lifetime: >=100000 Times
Noise: ≤65dB (30cm away)
Duty work: Work a whole day continously
Charateristic: Light weight,no spark,etc.
Air flow: 1.5-3.0 LPM
Water flow: 30-100mLPM
Suction Head: >=0.5m
Certification: RoHS,ce

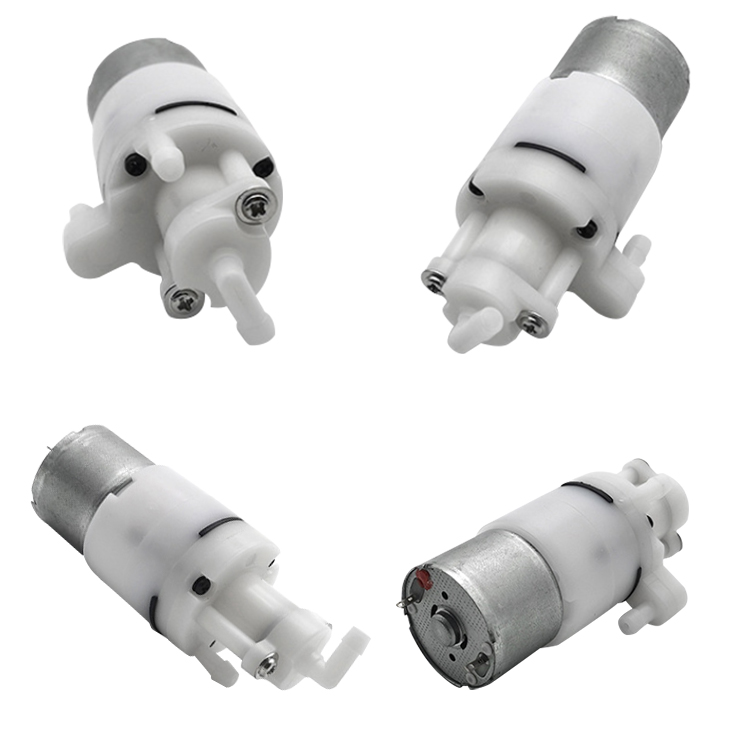

DSFP310-XE mini foam pump
Features
1. Life: Expected life span is 100000 times.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
7. One week for samples, two week for bulk order.
8. Factory price + high quality + good after-sales service
Related Parameters (The technical specification only for reference, it can be customized)
Voltage(V) | Power | Rated Current | Water flow | Air flow | Suction Head |
DC3V | 2.2W | ≤ 750mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 3.7V | 2.2W | ≤ 600mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 4.5V | 2.2W | ≤ 500mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 6V | 2.2W | ≤ 350mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
We supply Full Customization Service, please contact us for the details.
