Water Pump 3804GPH Large Flow 12/24V DC Brushless Electric Submersible Pump
Product name: Water pump
Model: DS9002
Working voltage: 12/24V(DC)
Max. flowrate: 240L/min
Max. head: 6M
Working temp: ≤80℃
Material: PPS
Water proof level: IP68
Noise: ≤40dB
Lifetime: 30000H
Inlet diameter: R11/2
Outlet diameter: R11/2
DS9002 CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 30000 hours.
2. Low noise: ≤40dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS9002 | 24 | 9.5 | 240 | 6 | 216 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

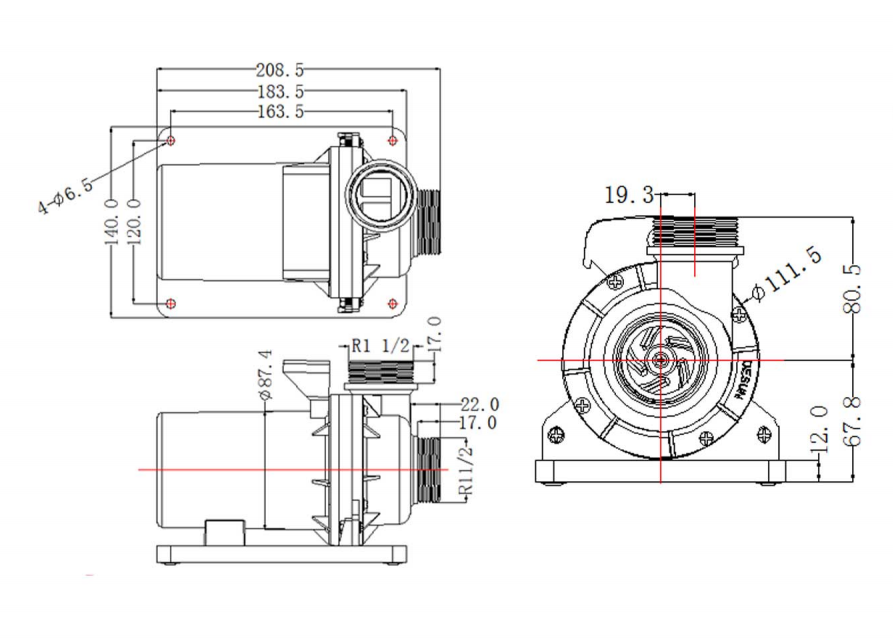

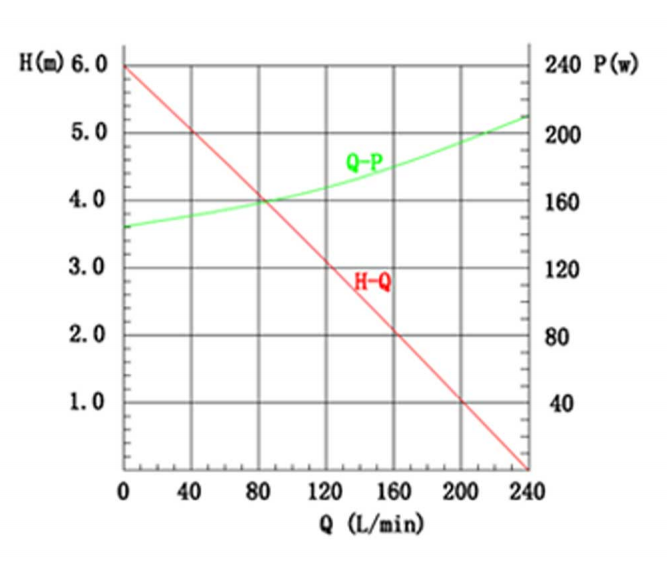

Dimensional drawing and working curve diagram
