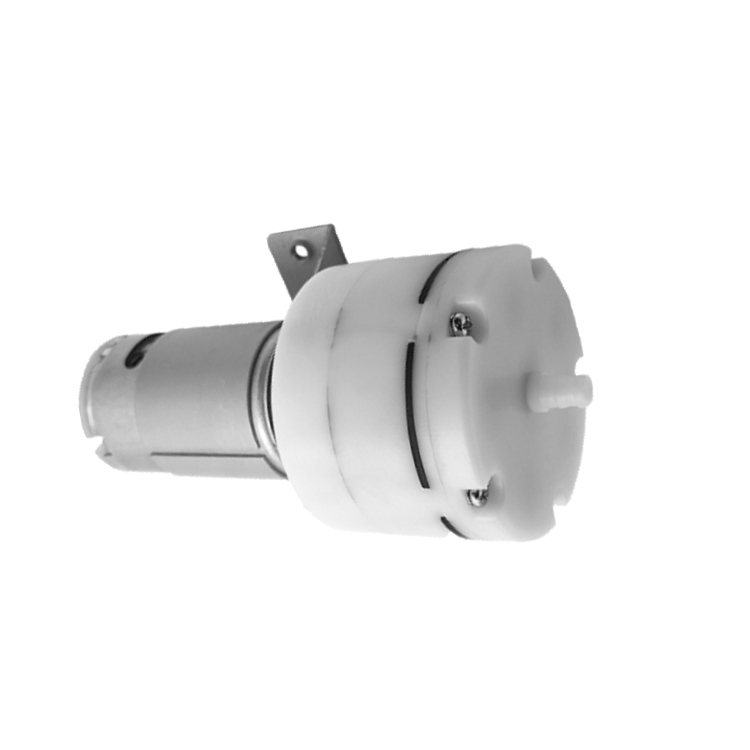

vacuum packaging machine 24V 900L/H micro vacuum pump
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSP555-XA
Place of Origin: Guangdong, China
Application: Other, Automotive Industry, Commercial Buildings, Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining
Horsepower: Desun Standard
Power Source: Electric
Pressure: Low Pressure
Structure: Peristaltic Pump
Cable Length: Desun Standard
Outlet Size: 7mm
Voltage: 6V/9V/12V/24V
Power: 12W/7.2W
Product name: vacuum pump
Lifetime: >=500hours
Noise: ≤65dB (30cm away)
Max vacuum: <=-58Kpa(-435mmHg)
Max pressure: >=100Kpa(750mmHg)
vacuum flow: 10-15LPM
Weight: 285g
Duty work: Work a whole day continously
Certification: CE,RoHS
DSP555-XA vacuum pump
Features
1. Life: Expected life span is 500hours.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
6. One week for samples, two week for bulk order.
7. Factory price + high quality + good after-sales service
Related model technical parameters
Voltage(V) | Power | Rated Current | tap O.D. | Vacuum flow | Maximum Pressure |
DC 6V | 12W | ≤ 2000mA | Dia 7.0mm | 10 - 15 LPM | ≤ -58 Kpa |
DC 9V | 7.2W | ≤ 1300mA | Dia 7.0mm | 10 - 15 LPM | ≤ -58 Kpa |
DC 12V | 12W | ≤ 1000mA | Dia 7.0mm | 10 - 15 LPM | ≤ -58 Kpa |
DC 24V | 12W | ≤ 500mA | Dia 7.0mm | 10 - 15 LPM | ≤ -58 Kpa |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the
details.
