Ultra-quiet DS5020 DC 12V 80W 10L/min Flow Rate Waterproof Brushless Pump Mini Submersible Water Pum
Customized support:OEM, ODM
Brand Name:DESUN
Place of Origin:Guangdong, China
Application:Commercial Buildings, Family Homes, HVAC OEM, Industrial Utilities, Machining, Metal and Equipment Manufacturers, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
Power Source:Electric
Pressure:0.8bar
Structure:Single-stage Pump
Outlet Size:7mm
Voltage:12V/24V
Power:55W/80W
Product Name:Centrifugal Pump
Temperature:70℃ or 100℃
Material:PPS/PPE/ABS OPTIONAL
Life span:20000hours
Working voltage:12V~24V
Flow rate:10L/MIN
Water head:MAX.20M
Weight:0.35kg
Certification:CE,RoHS
DS5505 CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours. 2. Low noise: ≤40dB, far from 1 meter distance. 3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation. 4. Small size, lightweight, easy to install； 5. Epoxy potting, IP68 waterproof rating； 6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection; 7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS5505 |
Working voltage | 12/24V(DC) |
Max. flowrate | 40L/min |
Max. head | 16M |
Working temp. | 70℃/100℃ |
Material | PPS |
Water proof level | IP68 |
Noise | ≤35dB |
Lifetime | 20000H |
Inlet diameter | 24mm |
Outlet diameter | 22mm |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS5505-12120S | 12 | 4.5 | 35 | 12 | 54 |
DS5505-24120S | 24 | 2.2 | 35 | 12 | 54 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

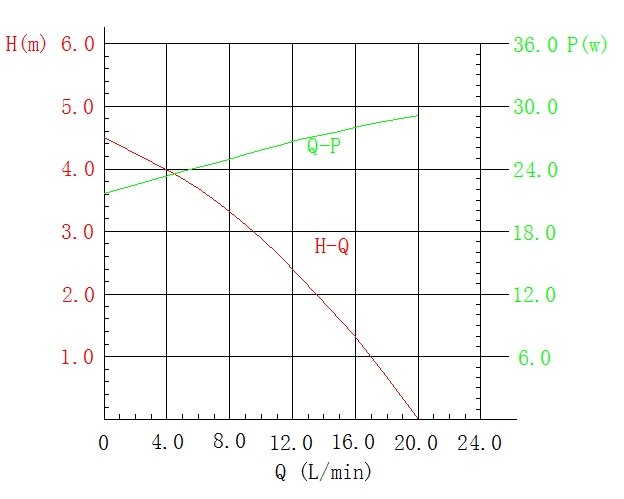

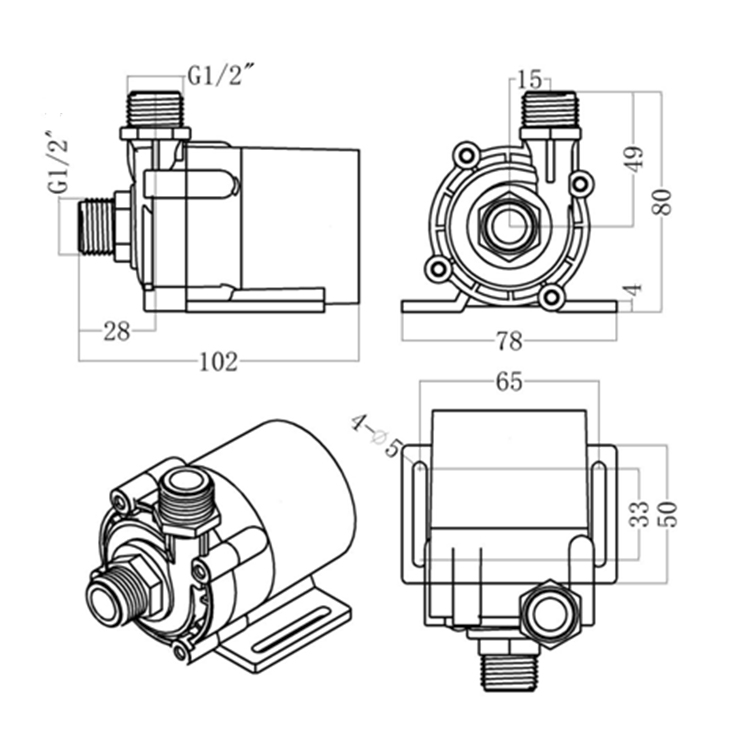

Dimensional drawing and working curve diagram
DS4506 12V
DS4506 24V
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
