stainless steel solar deep well submersible pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China

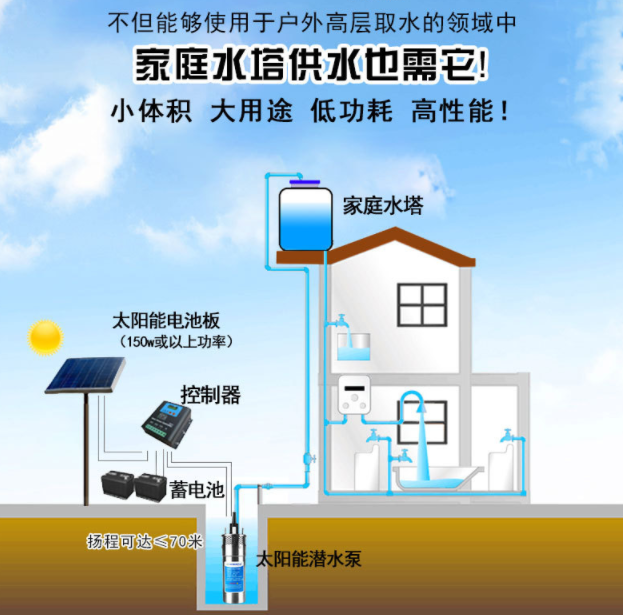

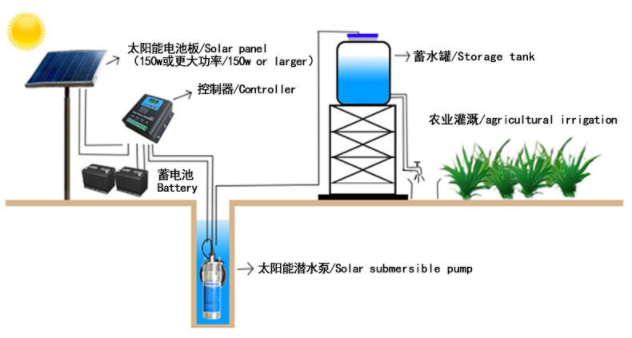

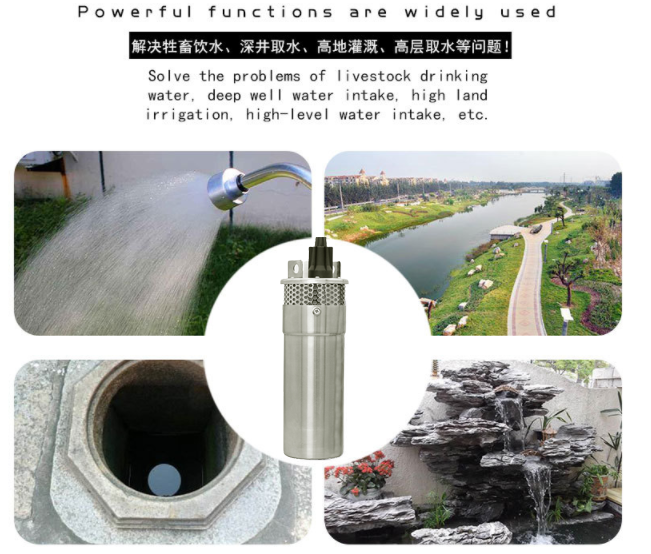

Application:Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining
Horsepower:Desun standard
Power Source:Electric
Pressure:High Pressure
Structure:Diaphragm Pump
Cable Length:Desun standard
Voltage:12V/24V
Power:96W/120W
Theory:deep well pump
Long life:2000hours
Lifetime:Over 2000 hours
low noise:Less than 35dB Far from 1m distance
Fuel:Solar panel,DC electric source,Battery
Certification:CE,RoHS
Features:
1.Low energy consumption, high performance, can achieve greater effects with lower power consumption, and greatly reduce the cost of solar panels;
2.Integral drawing made of stainless steel 304 material, high strength, high pressure resistance, fast heat dissipation;and not easy to leak;
3.Using high-quality copper-wound rotor, long life, low energy consumption, and more stable;
4.The diaphragm adopts the original santoprene granular material imported from USA (high purity, long life).

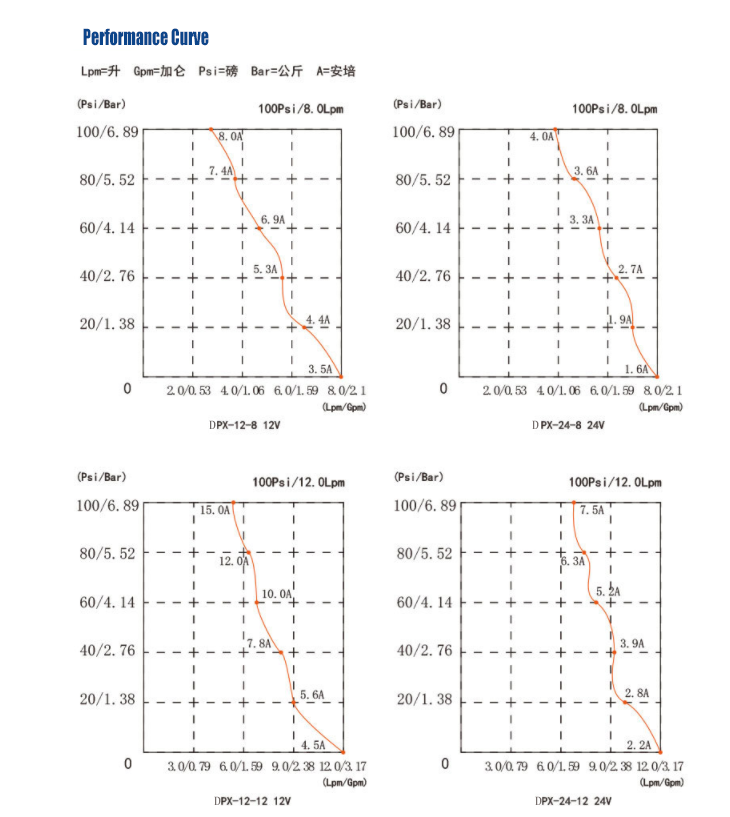

Model | Working voltage(V) | Flow (L/min) | Power (W) | OD. (mm) | Pressure (Psi/Bar) | Dive depth (m) | Water lift (m) | Size (mm) | Net weight/ Gross weight(kg) |
DPX-12-8 | 12 | 8 | 96 | 12.7 | 100/7.0 | 30 | 70 | 310*99*99 | 3.0/3.3 |
DPX-24-8 | 24 | 8 | 96 | 12.7 | 100/7.0 | 30 | 70 | 310*99*99 | 3.0/3.3 |
DPX-12-12 | 12 | 12 | 120 | 12.7 | 100/7.0 | 30 | 70 | 350*99*99 | 3.7/4.0 |
DPX-24-12 | 24 | 12 | 120 | 12.7 | 100/7.0 | 30 | 70 | 350*99*99 | 3.7/4.0 |

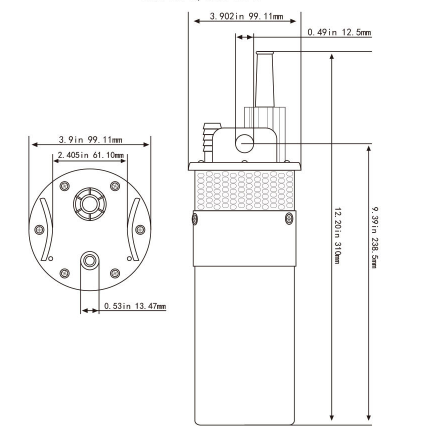

Pump size:
DPX-12-8/DPX-24-8

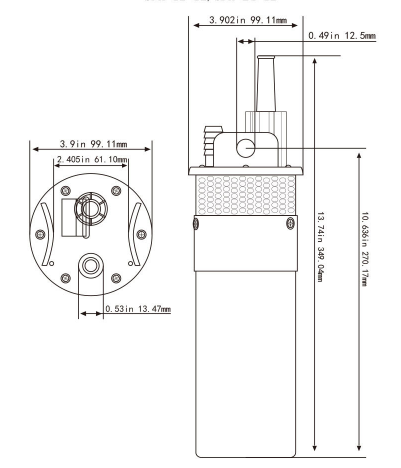

Pump size:
DPX-12-12/DPX-24-12
Products Description
* The technical parameters above are only a few for your reference. * All models can be equipped with adapters. * All models can be powered by solar power, DC power, solar panels, batteries, etc.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.
ATTENTION
* Do not use dirty water (silt in dirty water will cause irreversible damage to the pump). * Non-submersible pumps are not
waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after
use. * Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time. * Do not disassemble the water
pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be
fatal to the pump). * It is strictly forbidden to use this machine without the filter, and the density of the filter should be
above 80 mesh (impurities will cause damage to the pump). * The diameter of the spray hole must meet the specified value,
otherwise, the water pump will be damaged. * Please confirm the power supply before use, the power supply parameters must be
consistent with the pump input parameters
Our Advantages
Category
(agricultural/irrigation pump, etc..)
Company Profile
Packaging
FAQ
Do you accept OEM/ODM Service? Yes, we have been the professional OEM/ODM supplier for many years. What's your main products? Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want. How can I choose the pump? We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range. What's your product MOQ? We accept sample order, the MOQ can be negotiated. How long is your delivery time? Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days. How long is your warranty of pump? Warranty is one year, can be repaired free of charge What's the payment method? By Trade Assurance, Paypal, T/T, L/C, Western Union, etc... What certificates have your pumps passed? All our products have passed CE, RoHs, Reach. Parts of pumps met UL. How do you ship the goods? Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity What's your port of loading?
Shenzhen port, Dongguan port, Guangzhou port, for other we can communicate it.
