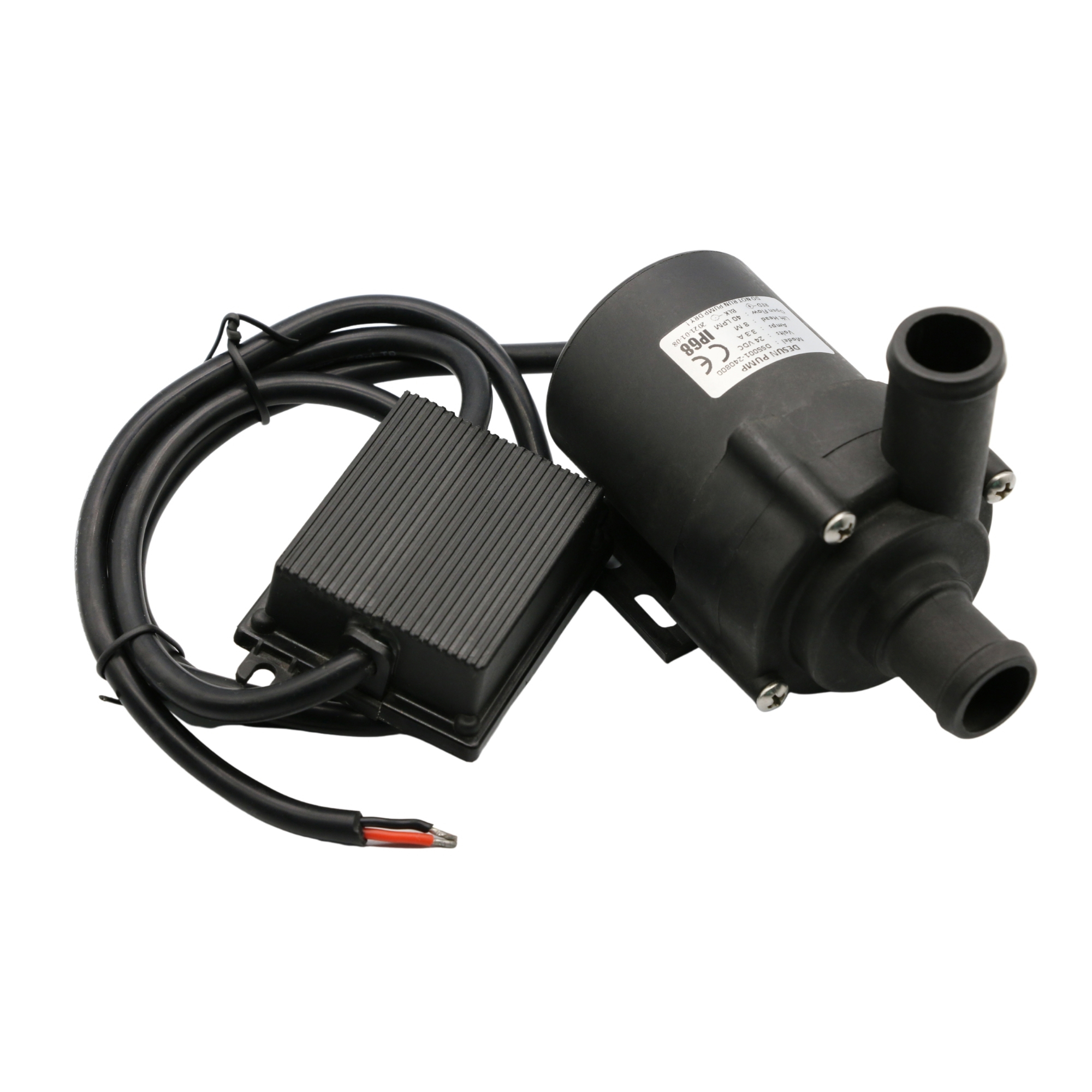

Speed Adjustable Brushless DC Motor Circulation Submersible pump water cooler pump
Model: DS5001
Working voltage: 12/24V(DC)
Max. flowrate: 40L/min
Max. head: 8M
Working temp: ≤100℃
Material: PPS
Water proof level: IP68
Noise: ≤45dB
Lifetime: 20000H
Inlet diameter: 22mm
Outlet diameter: 22mm
DS5001 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 20000 hours.
2. Low noise: ≤45dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS5001 |
Working voltage | 12/24V(DC) |
Max. flowrate | 40L/min |
Max. head | 8M |
Working temp. | ≤100℃ |
Material | PPS |
Water proof level | IP68 |
Noise | ≤45dB |
Lifetime | 20000H |
Inlet diameter | 22mm |
Outlet diameter | 22mm |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS5001-1280 | 12 | 6.5 | 40 | 8 | 78 |
DS5001-2480 | 24 | 3.3 | 40 | 8 | 80 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

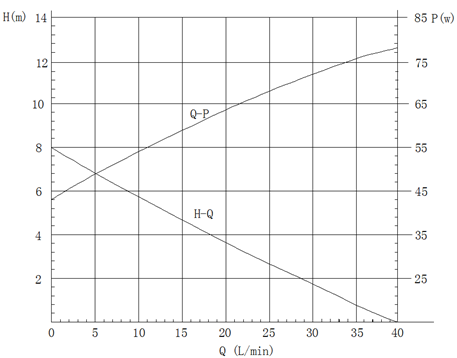

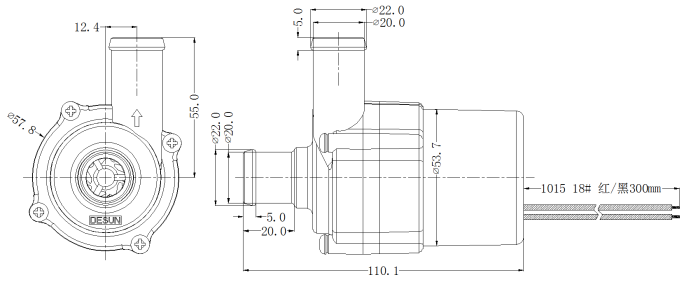

Dimensional drawing and working curve diagram
