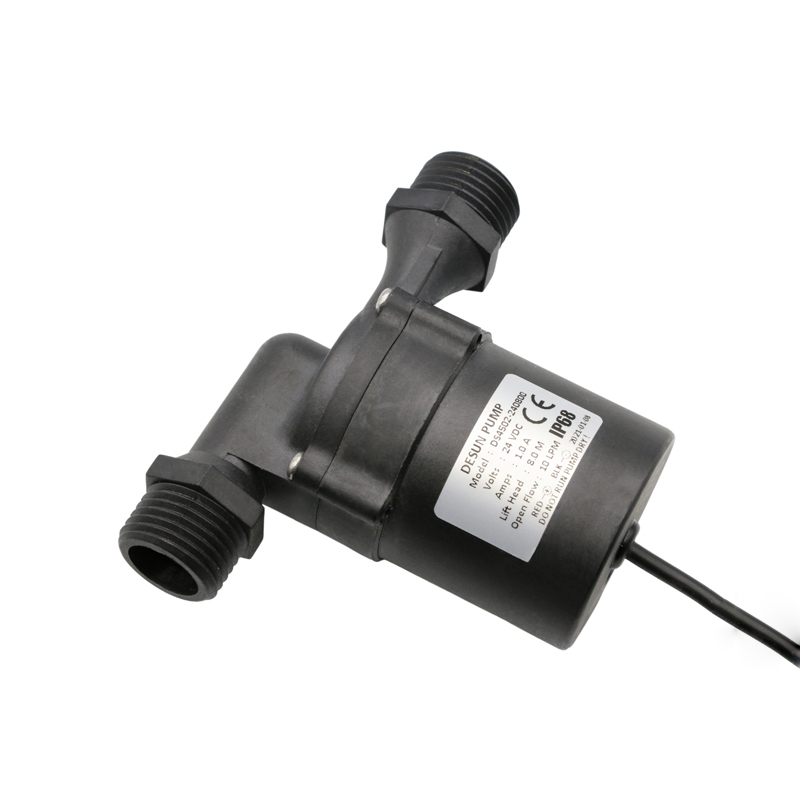

DS4502 CENTRIFUGAL ELECTRIC WATER PUMP

Features

1. Brushless motor, long life span； Expected life span is about 20000 hours.

 2. Low noise: ≤40dB, far from 1meter distance.

3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.

4. Small size, lightweight, easy to install；

5. Epoxy potting, IP68 waterproof rating；

6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;

7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；

Customizable Functions

1. 0~5V speed control;

2. FG signal wire;

3. PWM speed control;

4. PV solar powered

5. Submersible(water tempreture≤50℃);

6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).

Related model technical parameters

The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

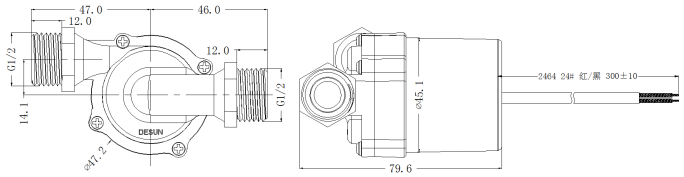

Dimensional drawing and working curve diagram

DS4502 12V

DS4502 24V
