OEM Factory 12V 24V Small BLDC Water Electrical Pump For Home Appliance
Product name: Water pump
Model: DS3902
Working voltage: 12/24V
Max. flowrate: 8L/min
Max. head: 4.5M
Working temp: ≤75 ℃
Material: ABS
Water proof level: IP68
Noise: ≤35dB
Lifetime: 20000H
Inlet diameter: 13.5mm
Outlet diameter: 9.2mm

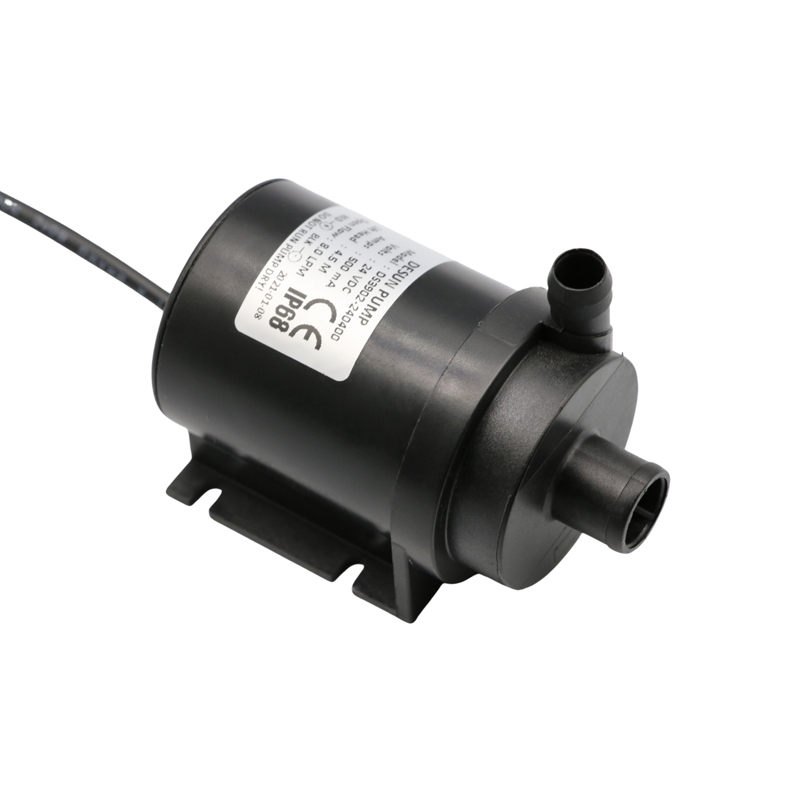

DS3902 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 20000 hours.
2. Low noise: ≤35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Dimensional drawing and working curve diagram
