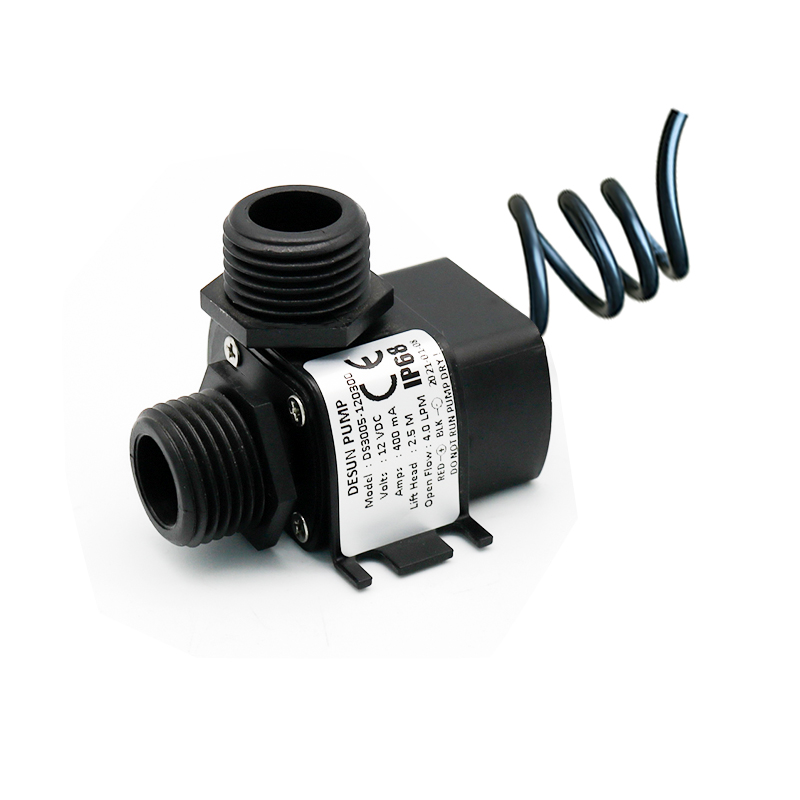

OEM 12v dc Small Electric Submersible cooler magnet Water Pump For Mini Conditioner
Product name: Water pump
Model: DS3005
Working voltage: 4~ 12V
Max. flowrate: 4L/min
Max. head: 3M
Working temp: ≤70 ℃
Material: ABS
Water proof level: IP68
Noise: ≤35dB
Lifetime: 20000H
Inlet diameter: R1/2
Outlet diameter: R1/2
DS3005 CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS3005 |
Working voltage | 4~ 12V |
Max. flowrate | 4L/min |
Max. head | 3M |
Working temp. | ≤70 ℃ |
Material | ABS |
Water proof level | IP68 |
Noise | ≤35dB |
Lifetime | 20000H |
Inlet diameter | R1/2 |
Outlet diameter | R1/2 |
More technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS3005-0406 | 4.5 | 0.1 | 1.6 | 0.6 | 0.45 |
DS3005-0507 | 5 | 0.11 | 1.8 | 0.7 | 0.55 |
DS3005-0609 | 6 | 0.11 | 2.0 | 0.9 | 0.66 |
DS3005-0913 | 9 | 0.14 | 2.7 | 1.3 | 1.26 |
DS3005-1230 | 12 | 0.35 | 4 | 3 | 4.8 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

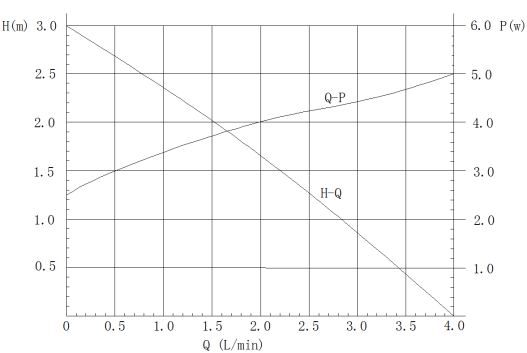

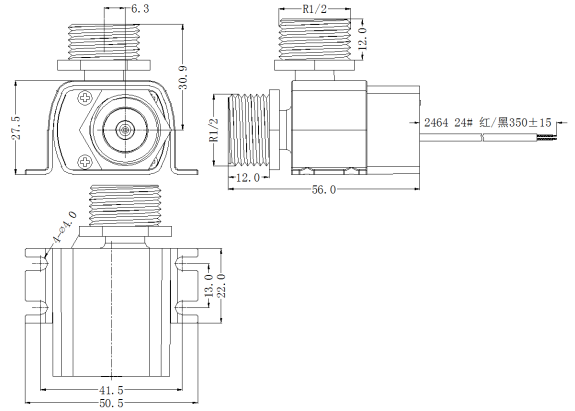

Dimensional drawing and working curve diagram
