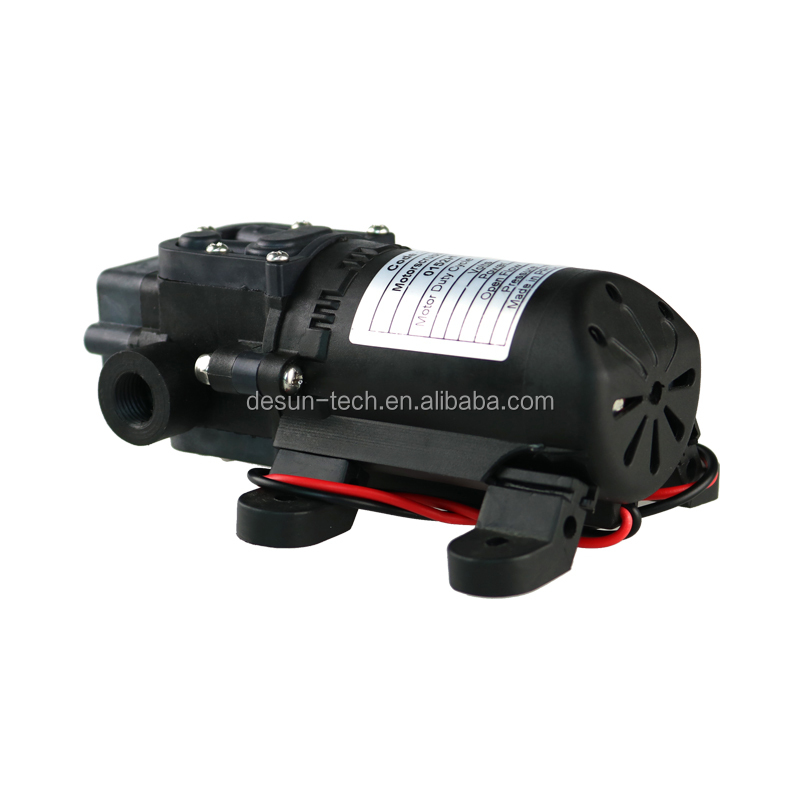

Mini Suction Pump 12V 24V 60W 5L/min Self-priming Water Diaphragm Pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Other, Commercial Buildings, Irrigation and Agriculture, Washing and Cleaning
Horsepower:60w
Power Source:Electric
Pressure:116psi
Structure:Diaphragm Pump
Cable Length:30cm
Outlet Size:20mm
Voltage:12V/24V
Power:60W
Theory:Diaphragm Pumps
Lifetime:5 years
Workig temp.:Less than 60℃
Weight:0.7KG
Heavy duty work:Work a whole day continously
Usage:liquid
Fuel:DC electric source,Battery.
Sample:Available
OEM & ODM Service:Support
Certification:ce
0152HT-1260 DIAPHRAGM SELF-PRIMING WATER PUMP
MODEL EXPLANATION
Take "5210HD-12-100" as an example, 5210 represents the motor model, H represents the pump's head type, D represents the interface type, 12 represents the voltage, and 100 represents the power.
PUMP'S HEAD TYPE EXPLANATION
TYPE Y INTELLIGENT PUMP HEAD
Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor; The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.
Application scope:
Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability. Application scope:
High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.
INTERFACE TYPE EXPLANATION
The pump's head type and the interface can be freely replaced, please contact us for the details.
TECHNICAL PARAMETERS
Model | Volts | Max power | Max pressure | Working pressure | Open flow | Suction lift | Pipe lift | Gunshot |
0152HT-1215 (YT same as it) | 12 | 15 | 6 | 3.5 | 1. 5 | 1m | 35m | / |
0152HT-1230 | 12 | 30 | 7 | 4 | 3 | 1m | 40m | / |
0152HT-2430 | 24 | 30 | 7 | 4 | 3 | 1m | 40m | / |
0152HT-1245 | 12 | 45 | 7.5 | 4.5 | 4 | 1m | 45m | / |
0152HT-1260 | 12 | 60 | 8 | 5 | 5 | 1m | 50m | 7m |
0152HT-2460 | 24 | 60 | 8 | 5 | 5 | 1.5m | 50m | 7m |
0152HT-1280 | 12 | 80 | 9 | 5.5 | 5. 5 | 1.5m | 55m | 8m |
* The technical parameters above are only a few for your reference.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.
some application scope for reference, not all.
We supply Full Customization Service, please contact us for the details.
