Mini Pump Food grade 12v 24v DC Coffee Machine Drink Water Pump
Product name: Water pump
Model: DS2502HF
Working voltage: 3~12V(DC)
Max. flowrate: 2L/min
Max. head: 2M
Working temp: ≤100 ℃
Material: PPE
Water proof level: IP68
Noise: ≤30dB
Lifetime: 20000H
Inlet diameter: 9.7mm
Outlet diameter: 7mm

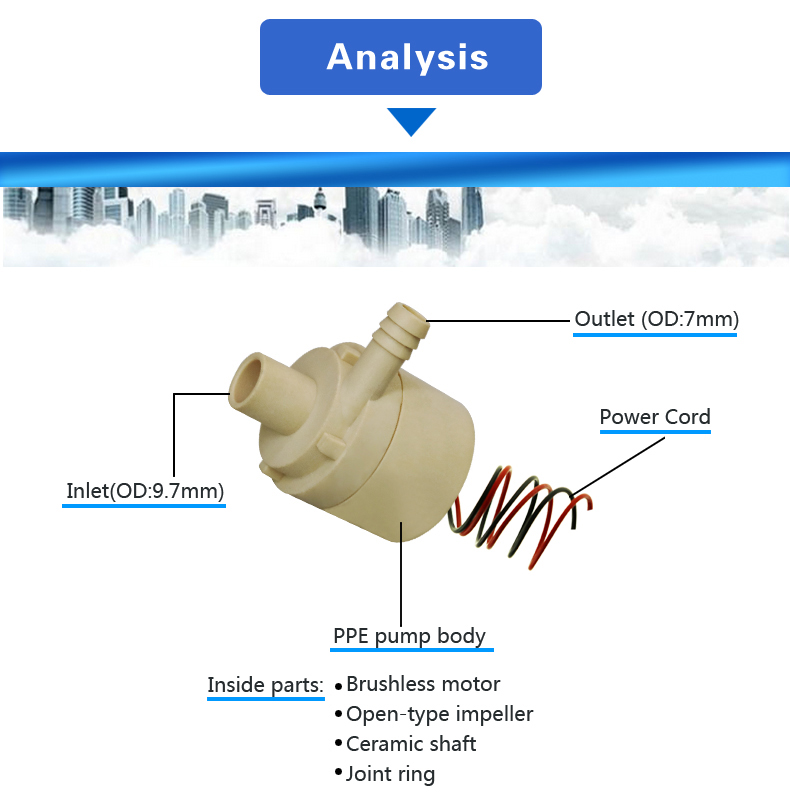

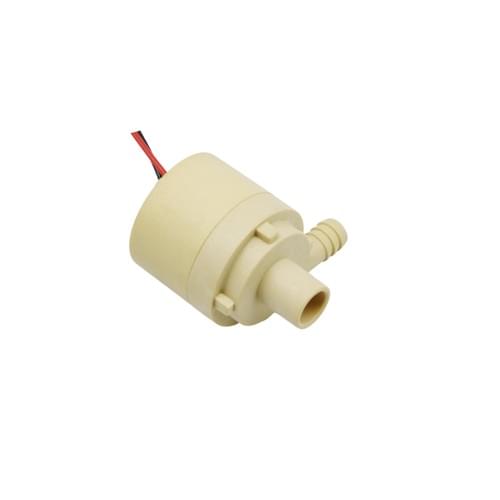

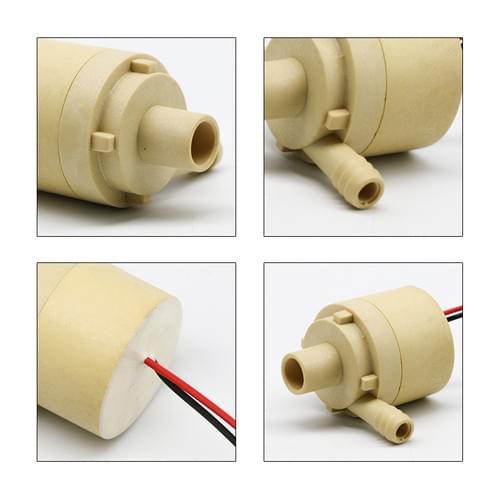

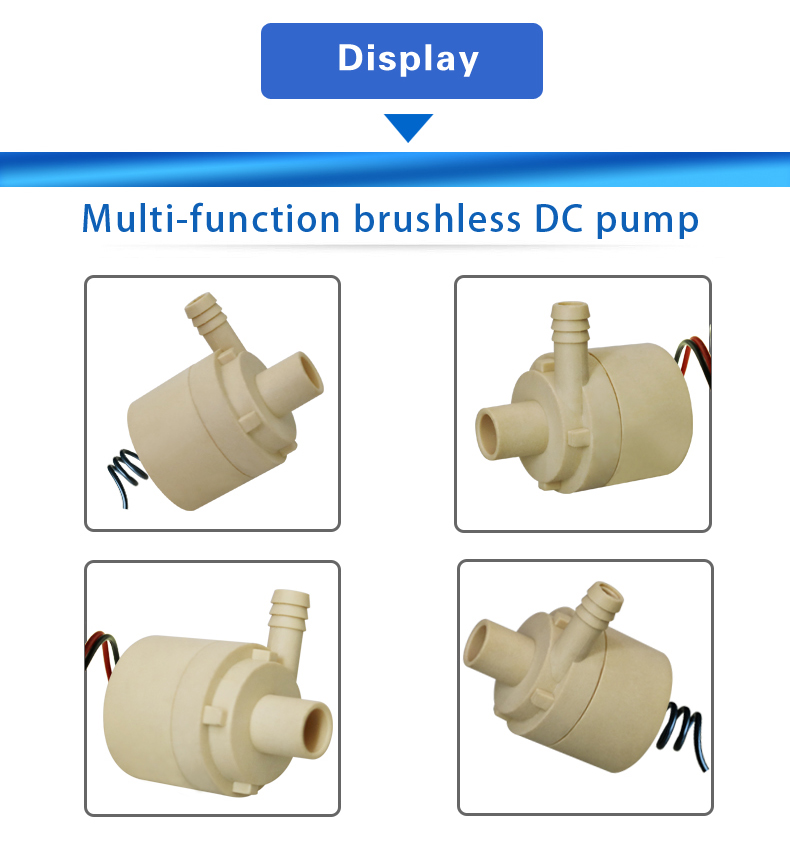

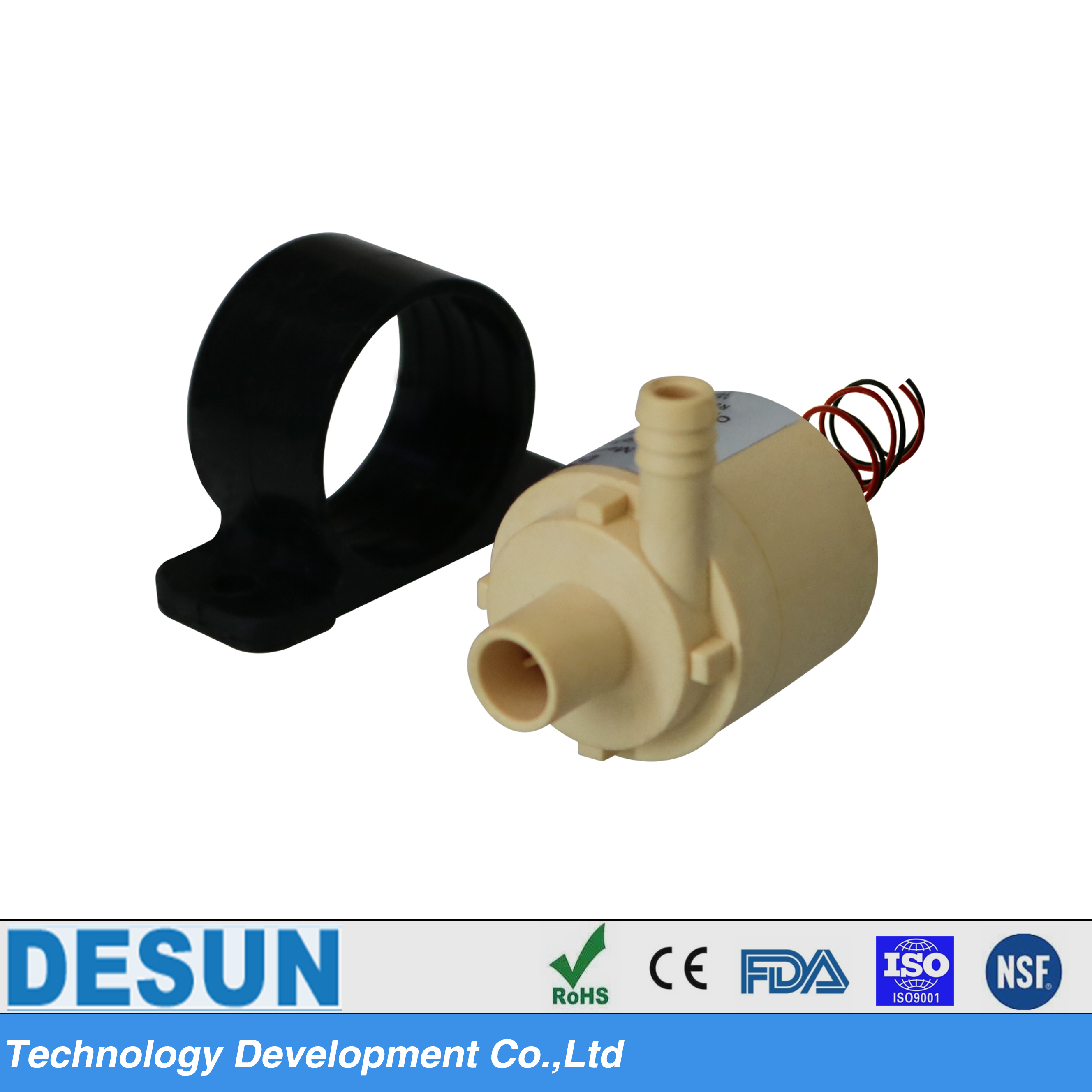

DS2502HF FOOD GRADE CENTRIFUGAL WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS2502HF |
Working voltage | 3~12V(DC) |
Max. flowrate | 2L/min |
Max. head | 2M |
Working temp. | ≤100 ℃ |
Material | PPE |
Water proof level | IP68 |
Noise | ≤30dB |
Lifetime | 20000H |
Inlet diameter | 9.7mm |
Outlet diameter | 7mm |
More technical parameters
Model | Volts(V) | Amps(A) | Flow(LPM) | Head(M) | Power(W) |
DS2502HF-0310 | 3 | 0.07 | 0.9 | 1 | 0.17 |
DS2502HF-0510 | 5 | 0.12 | 1.1 | 1 | 0.6 |
DS2502HF-0610 | 6 | 0.15 | 1.3 | 1 | 0.9 |
DS2502HF-0917 | 9 | 0.23 | 1.7 | 1.7 | 2.07 |
DS2502HF-1220 | 12 | 0.34 | 2 | 2 | 3.8 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
Widely used for food & beverage industry, such as coffee machine, water dispenser, beverage vender, etc...
We supply Full Customization Service, please contact us for the details.
Coffee Machine
Water Dispenser
Beverage Machine
