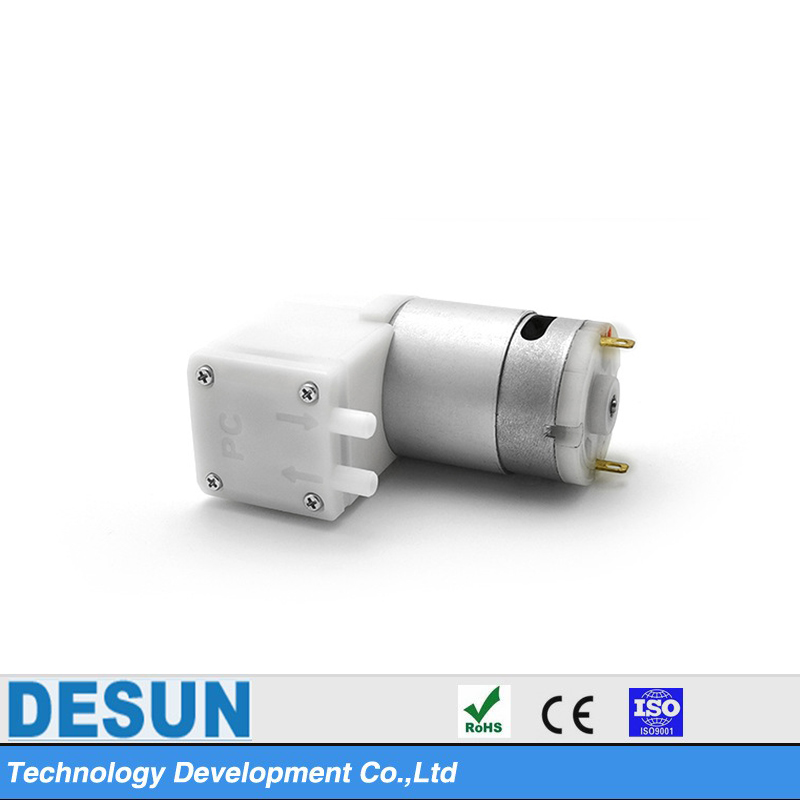

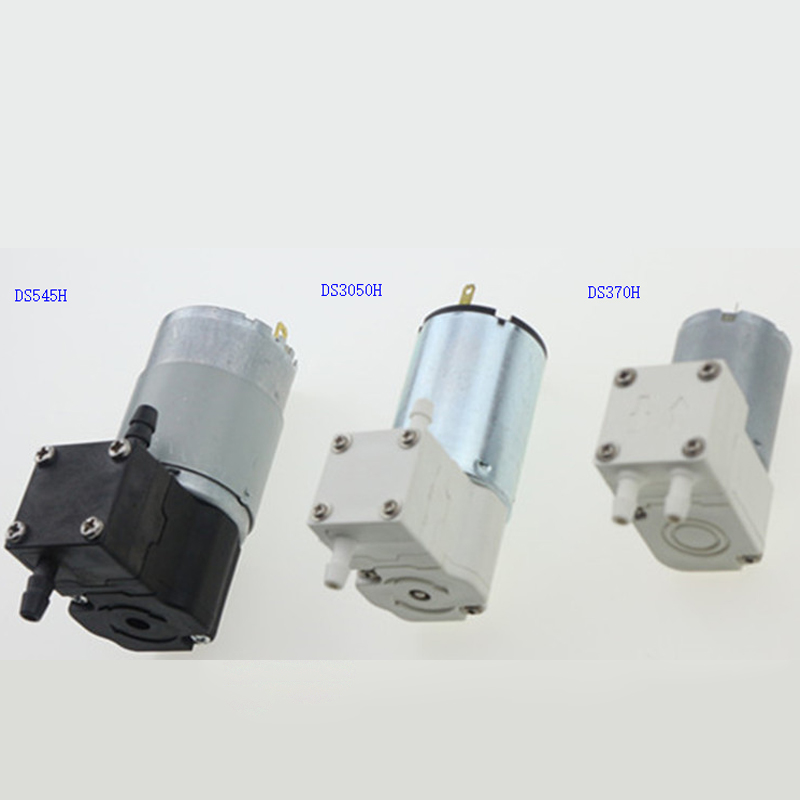

Mini dc Diaphragm metering 6v wear-resistant flat head vacuum pump for electric breast pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
Power Source:Electric
Pressure:Low Pressure
Structure:Vacuum Pump
Outlet Size:4.0mm
Voltage:6V/9V/12V/24V
Power:1.8W
Product name:Vacuum Pump
Lifetime:>= 500 Hours
Noise:≤755dB (30cm away)
Duty work:Work a whole day continously
Charateristic:Light weight,no spark,etc.
Vacuum flow:5.0 - 7.0 LPM
Maximum Pressure:=< -60Kpa (-525mmHg)
Rated voltage:6V/9V/12V/24V
Certification:RoHS,ce
VACUUM PUMP
Features 1. Life: Expected life span is over 500 Hours. 2. One Year warranty. 3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation. 4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C. 5. Working temperature: 5~45°C . 7. One week for samples, two week for bulk order.
8. Factory price + high quality + good after-sales service
Related Parameters (The technical specification only for reference, it can be customized)
Voltage(V) | Power | Rated Current | tap O.D. | Vacuum flow | Maximum Pressure |
DC 6V | 6.0W | ≤ 1000mA | Dia 4.3mm | 5.0 - 7.0 LPM | ≤ -70 Kpa |
DC 9V | 6.0W | ≤ 660mA | Dia 4.3mm | 5.0 - 7.0 LPM | ≤ -70 Kpa |
DC 12V | 6.0W | ≤ 500mA | Dia 4.3mm | 5.0- 7.0 LPM | ≤ -70 Kpa |
DC 24V | 6.0W | ≤ 250mA | Dia 4.3mm | 5.0 - 7.0 LPM | ≤ -70 Kpa |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
We supply Full Customization Service, please contact us for the details.
