Features

1. Small size, lightweight, easy to install;

 2. Epoxy potting, IP68 waterproof rating;

3. Brushless motor, long life span;

 4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.

Customizable Functions

1. 0~5V speed control;

2. FG motor speed feedback wire;

3. PWM adjustable;

4. Can work in water and out of water;

5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).

Related models technical parameters

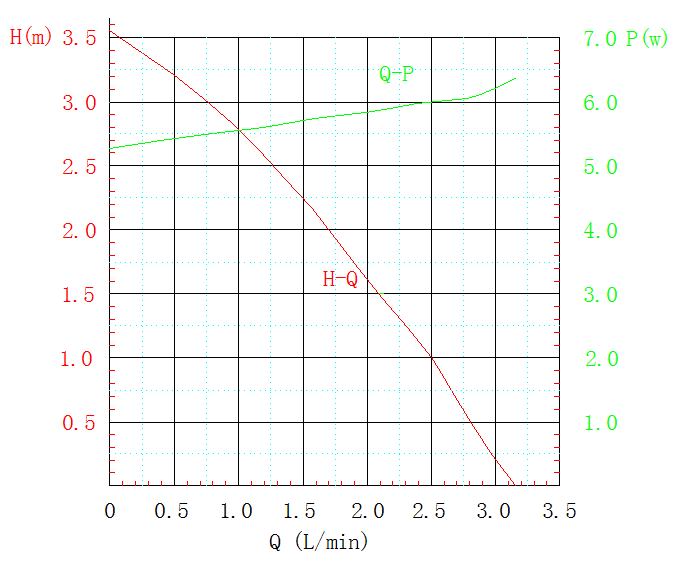

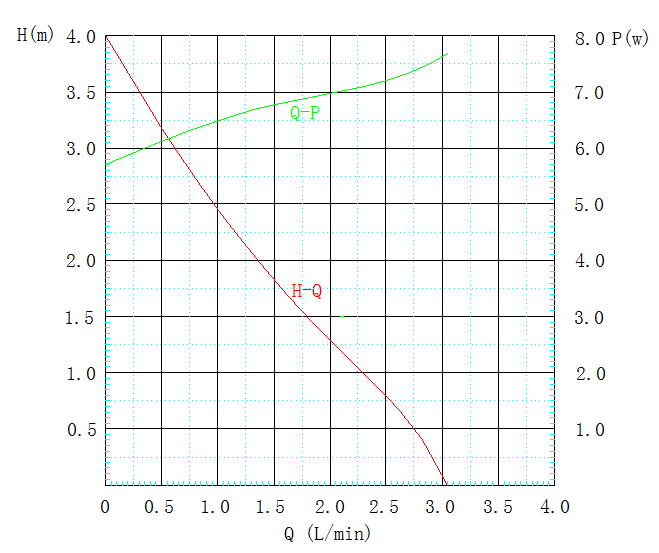

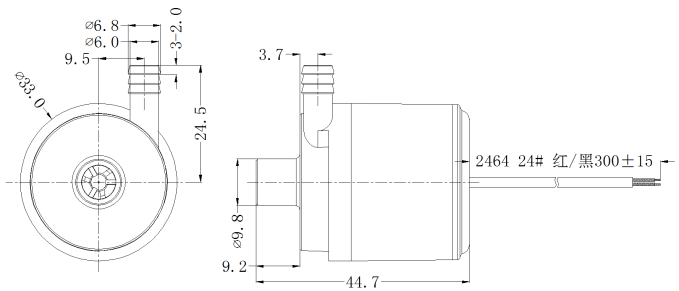

Dimensional drawing and working curve diagram

DS3301HF 12V

DS3301HF 24V

Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc...

We supply Full Customization Service, please contact us for the details.

Coffee Machine

Water Dispenser

Beverage Machine
