Micro air pump pressure gauge fish tank silent pump atomizer small air pump
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSP030-XA
Place of Origin: Guangdong, China
Application: Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Machining
Horsepower: 1W
Power Source: Electric
Pressure: Low Pressure
Structure: Diaphragm Pump
Outlet Size: 3mm
Voltage: 3V - 9V
Power: 1W
Theory: Diaphgram Pump
Lifetime: >=30,000 Times(on 10s/off 5s)
Noise: ≤60dB
Inlet size: 3.1MM
Max.pressure: >=50kpa(375mmHg)
Leakage: <=3.0mmHg/min(from 300mmHg in a 100cc tank)
Air flow: 0.3~1L/MIN
Water flow: 30~100mLPM
Inflation time: <=8s(from 0 to 300mmHg in a 100cc tank)
Certification: CE,RoHS

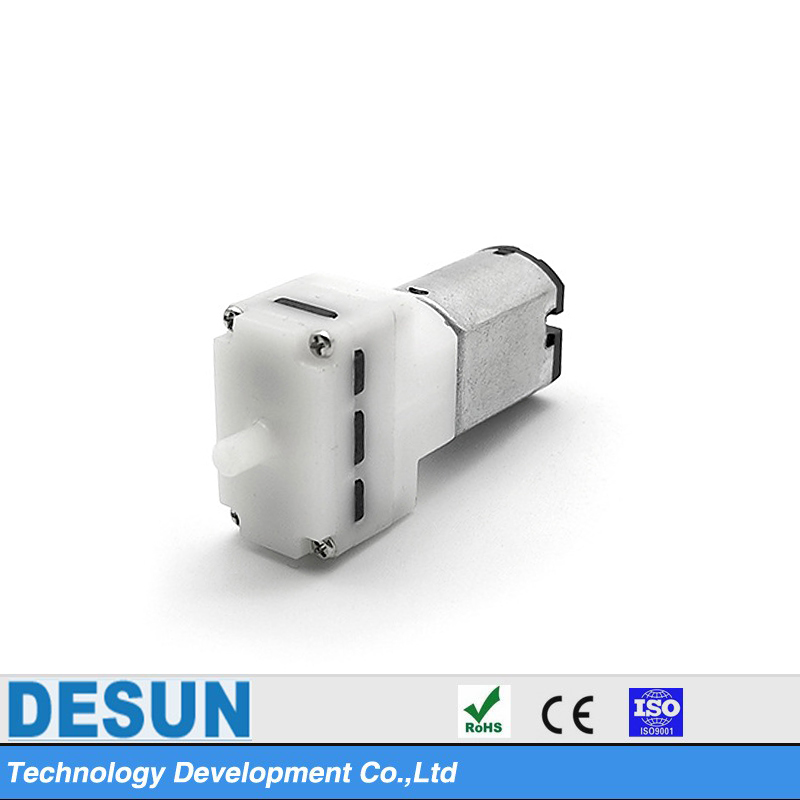

DSP030-XA Mini air Pump
Features
1. Life: Expected life span is >=30,000 Times(on 10s/off 5s).
2. Low noise: ≤60dB, far from 30cm distance.
3. Working conditions: Applying to indoor and outdoor under temperature 60 deg C.
4. Have suction function. can run continuously.
5. It can be powered directly by a Solar panel, DC electric source, or battery.
Technical parameters
Product name | Mini air Pump |
Model | DSP030-XA |
Working voltage | 3~9V（DC） |
Air flow | 0.3~1L/MIN |
Max.pressure | >=50kpa(375mmHg) |
Leakage | <=3.0mmHg/min(from 300mmHg in a 100cc tank) |
Material | Nylon material |
Inflaiton time | <=8s(from 0 to 300mmHg in a 100cc tank) |
Noise | ≤ 60dB |
Lifetime | >=30,000 Times(on 10s/off 5s) |
Weight | 14g |
Outlet diameter | Dia 3.1mm |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

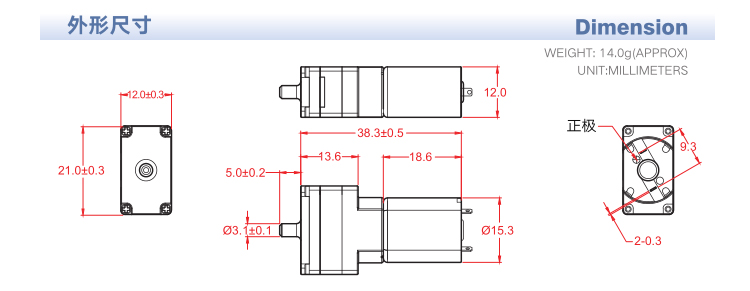

Dimensional drawing and working curve diagram
Widely used for Home appliances,medical,blackhead meters, breast pumps, vacuum packaging machines, massage machines, foam hand sanitizers, teeth flushers and other products; household appliances, medical treatment, beauty, massagers,adult products,Sphygmomanometers, Essential oil machines,Booster technology etc. Industries
We supply Full Customization Service, please contact us for the details.
