Large flowrate brushless auto water pump Electronic speed adjustalbe Water Pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Family Homes, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
Horsepower:Desun standard
Power Source:Electric
Pressure:0.8bar
Structure:Single-stage Pump
Outlet Size:INLET 38MM ,OUTLET 25MM
Voltage:24V
Power:250W
Long life:Over 20000 hours
Waterproof level:IP68
Workig temp.:≤105℃
Inlet diameter:38MM
Outlet dia:38mm
Materail:Aluminum alloy
Charateristic:Light weight,no spark,etc.
Weight:2kg
Certification:RoHS,ce

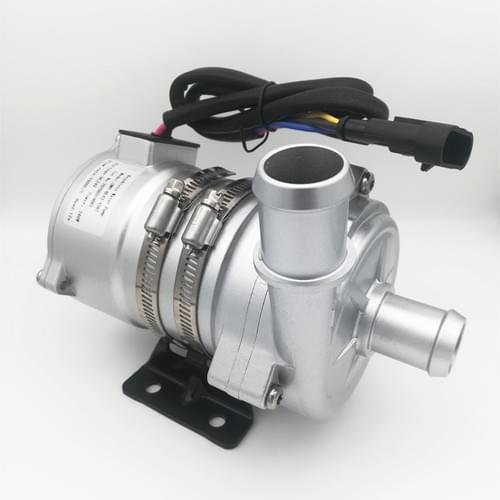

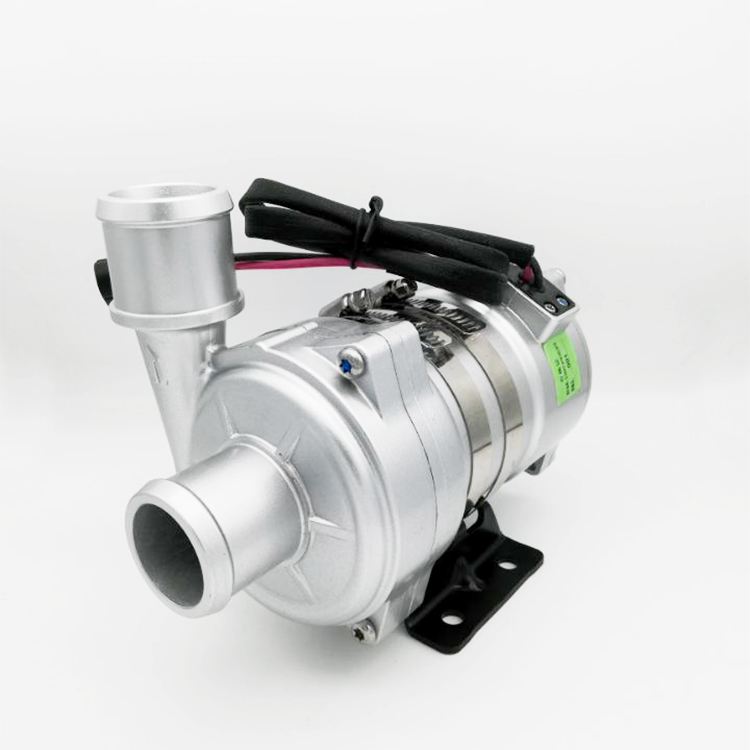

DSP43-4LX Brushless ELECTRIC WATER PUMP
Features
1. Mainly used in new energy vehicle cooling and plumbing systems 2. The flow rate of this water pump is especially suitable for cooling systems with large flow rates 3. The brushless DC motor has good reliability, high efficiency and energy saving, low noise and long life 4. Soft start protection: small starting current 5. Overvoltage/undervoltage protection: When the voltage exceeds the available range, the pump will stop running, and when the voltage returns to the proper voltage range, the pump will resume normal operation. 6. Locked-rotor protection: When the pump is stuck due to foreign matter, the pump will stop running. After the foreign matter is removed, the pump will resume normal operation. 7. Reverse connection protection: when the positive and negative poles are connected reversely, the pump will automatically cut off the power for protection
Technical parameters
Working medium: antifreeze Ambient temperature: -40℃~+85℃ Medium temperature: -40℃~+85℃, the limit temperature is 105℃ Rated voltage: DC24V Voltage range: DC18V~DC32V Weight: 2kg (without base) Life: ≥20000h Protection level: IP68 Protection function: overvoltage/undervoltage, locked rotor, reverse connection, overcurrent, idling
Related performance parameters
Model | Power (W) | Flow (LPH) | Head (M) | Inlet (mm) | Outlet (mm) |
DSP43-4LX | 250 | 2800 | 16 | 38 | 25 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

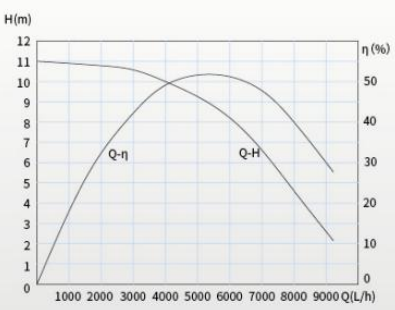

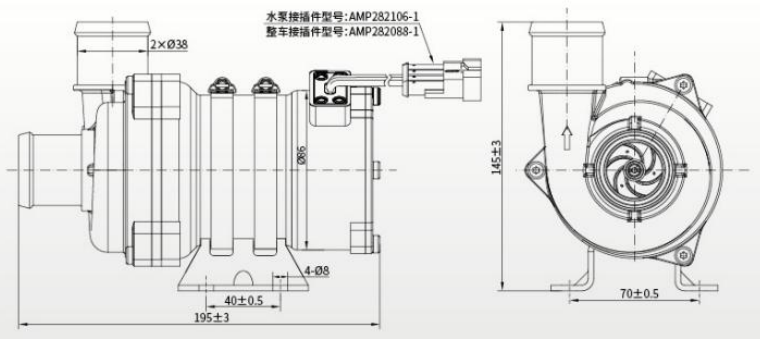

Dimensional drawing and working curve diagram
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
