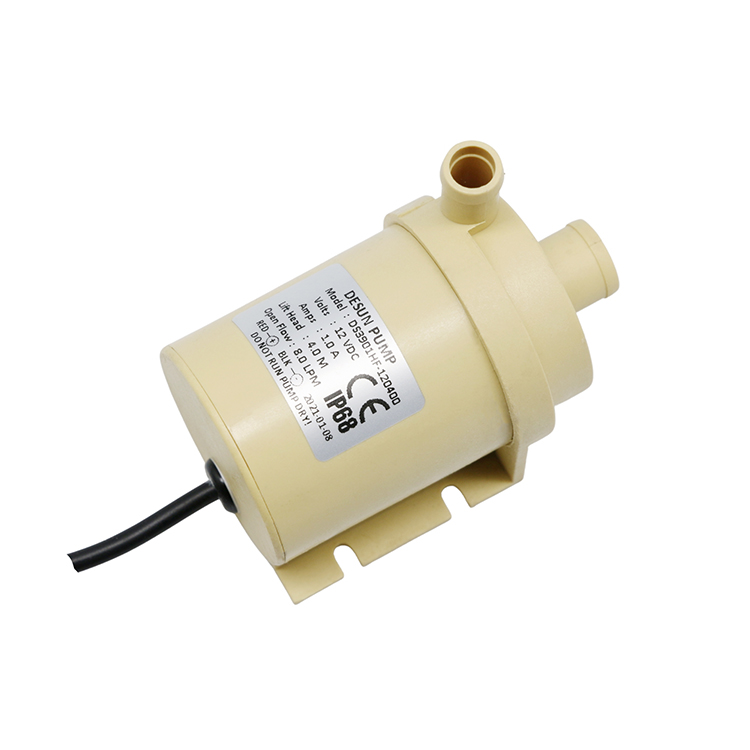

Hot Sale 12v/24v 8L/min Food grade DC Water Pump Submersible Micro Water Pump
Product name： Water pump
Model： DS3901HF
Working voltage：12/24V
Max. flowrate： 8L/min
Max. head： 4.5M
Working temp: ≤100 ℃
Material: PPE
Water proof level: IP68
Noise: ≤35dB
Lifetime: 20000H
Inlet diameter: 13.5mm
Outlet diameter: 10mm
DS3901HF FOOD GRADE CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours.
2. Low noise: ≤35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install；
5. Epoxy potting, IP68 waterproof rating；
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS3901HF-0520 | 5 | 1.5 | 5 | 2 | 7.5 |
DS3901HF-0630 | 6 | 1.5 | 6 | 3 | 9 |
DS3901HF-0940 | 9 | 1.3 | 6.5 | 4 | 4.5 |
DS3901HF-1240 | 12 | 1 | 8 | 4 | 12 |
DS3901HF-2440 | 24 | 0.5 | 8 | 4.5 | 13 |
Dimensional drawing and working curve diagram
DS3901 12V
DS3901 24V
Coffee Machine
Water Dispenser
Beverage Machine
