High Quality Computer CPU Cooling cooler pump magnet Speed Adjustable Electric Water Circulation Pum
Product name: Water pump
Model: DS6002
Working voltage: 12/24V(DC)
Max. flowrate: 6L/min
Max. head: 2M
Working temp: ≤100℃
Material: PPE
Water proof level: IP68
Noise: ≤25dB
Lifetime: 20000H
Inlet diameter: 17mm
Outlet diameter: 10mm

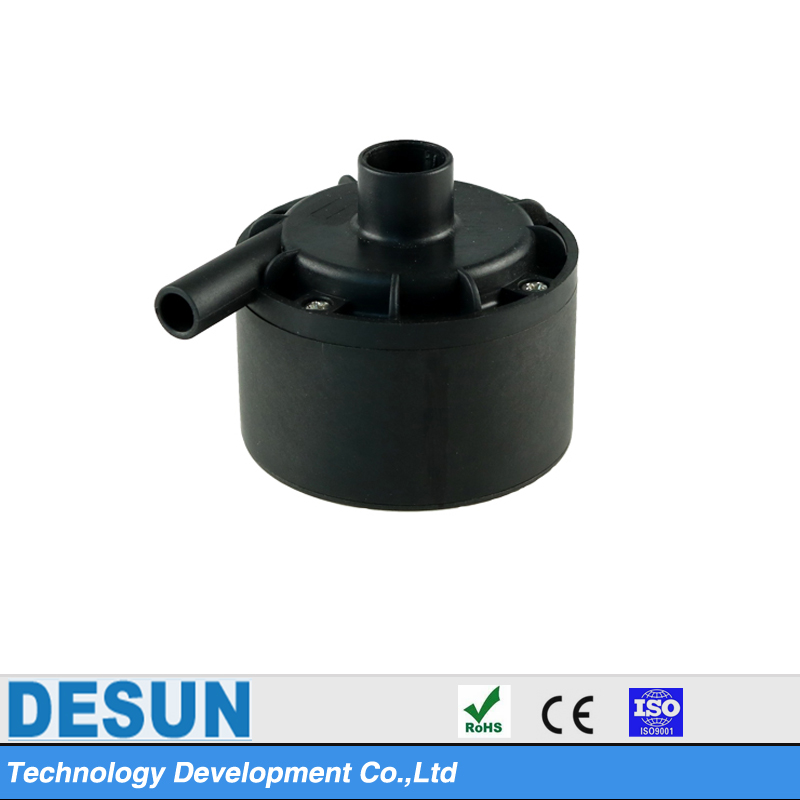

DS6002 CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 20000 hours.
2. Low noise: ≤25dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS6002 |
Working voltage | 12/24V(DC) |
Max. flowrate | 6L/min |
Max. head | 2M |
Working temp. | ≤100℃ |
Material | PPE |
Water proof level | IP68 |
Noise | ≤25dB |
Lifetime | 20000H |
Inlet diameter | 17mm |
Outlet diameter | 10mm |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS6002-1220 | 12 | 0.5 | 6 | 2 | 6 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
