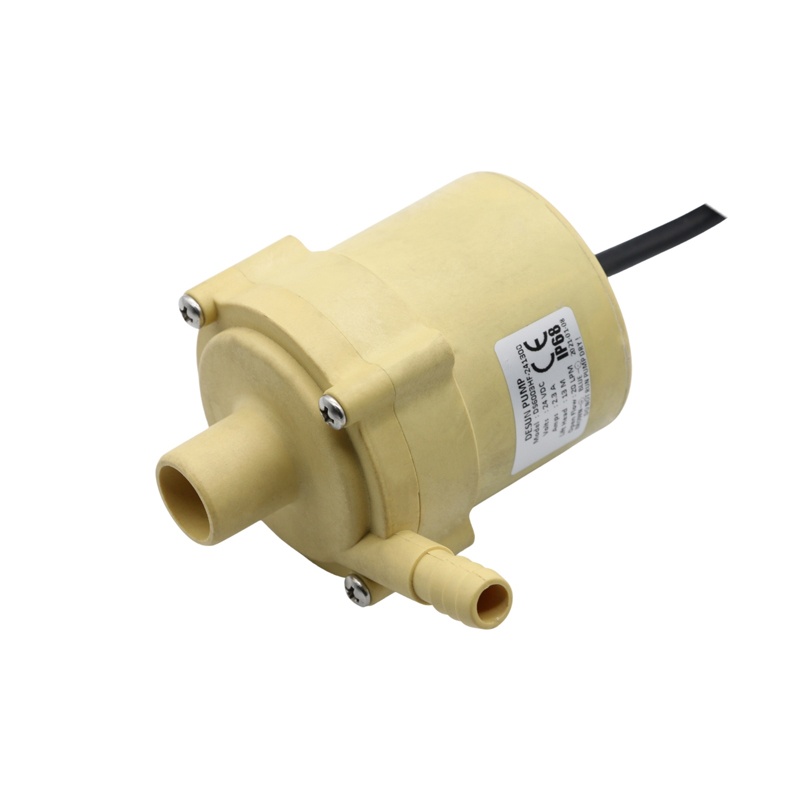

High Quality 23LPM 24v DC Mini Silent Circulation Water Pump With CE Certification
Product name: Water pump
Model: DS6006HF
Working voltage: 12V/24V
Max. flowrate: 23L/min
Max. head: 13M
Working temp: 70℃/100℃
Material: PPS
Water proof level: IP68
Noise: ≤45dB
Lifetime: 20000H
Inlet diameter: R1/2''
Outlet diameter: R1/2''
DS6006HF CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 20000 hours.
2. Low noise: ≤40dB, far from 1 meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).

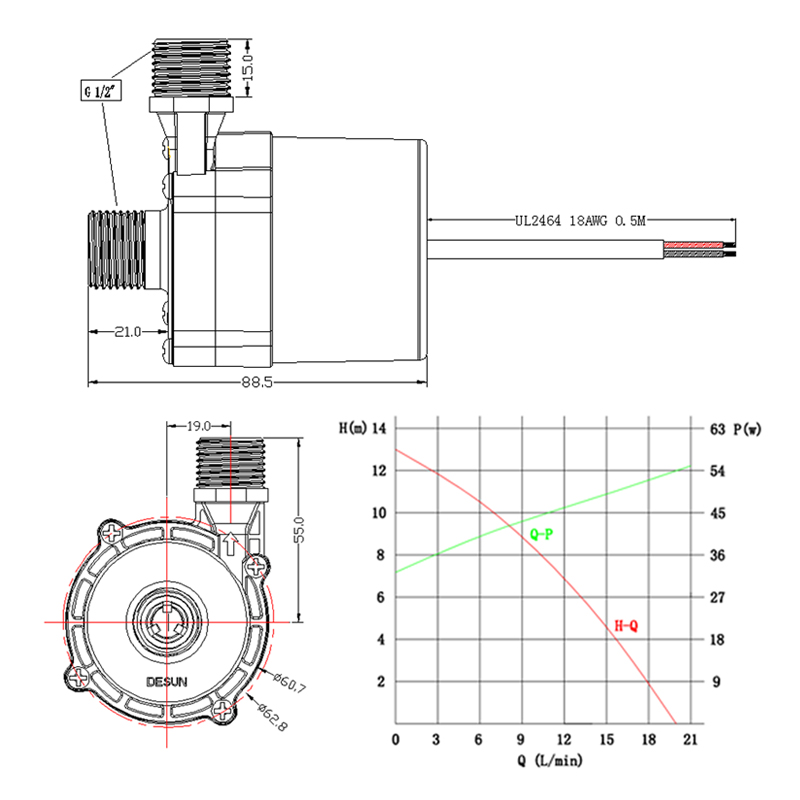

Dimensional drawing and working curve diagramThe technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
