Hand sanitizer foaming machine dc micro foaming pump 6v electric pump
Customized support:OEM, ODM
Brand Name:Desun
Model Number:DSFP310-XB
Place of Origin:Guangdong, China
Application:Other, Automotive Industry, Commercial Buildings, Family Homes, Industrial Utilities, Irrigation and Agriculture, Washing and Cleaning
Horsepower:Desun Standard
Power Source:Electric
Pressure:Low Pressure
Structure:Peristaltic Pump
Cable Length:Desun Standard
Outlet Size:6.3mm
Voltage:3V/3.7V/4.5V/6V
Power:2.2w
Product name:foam pump
Lifetime:>=100000 Times
Noise:≤65dB (30cm away)
water Flow rate:30-100mLPM
air flow:1.5-3.0 LPM
Duty work:Work a whole day continously
Feature:Light weight,no spark,etc.
Certification:CE,RoHS
Products Description

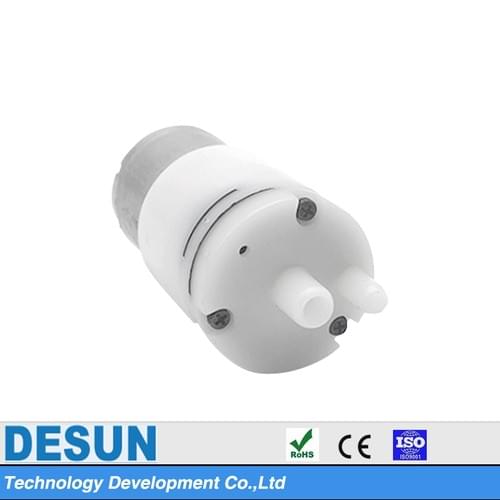

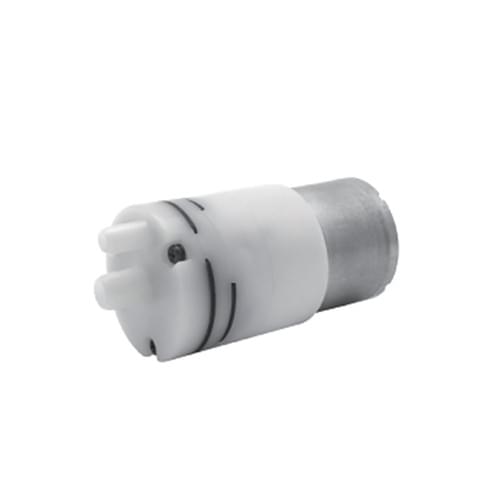

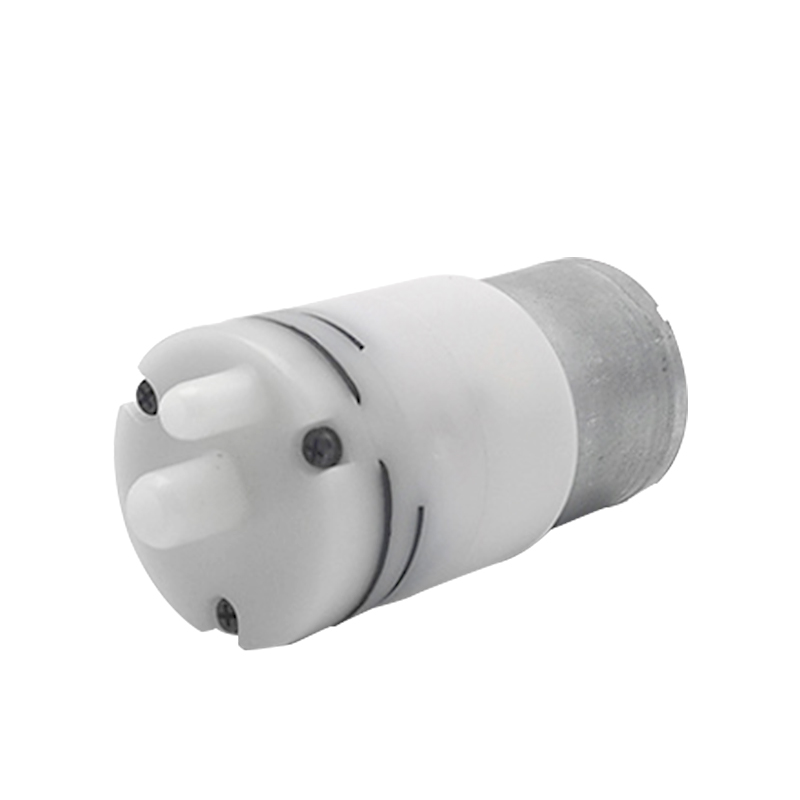

DSFP310-XB mini foam pump
Features
1. Life: Expected life span is 100000 times.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
6. One week for samples, two week for bulk order.
7. Factory price + high quality + good after-sales service
Related model technical parameters
Voltage(V) | Power | Rated Current | Water flow | Air flow | Suction Head |
DC3V | 2.2W | ≤ 750mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 3.7V | 2.2W | ≤ 600mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 4.5V | 2.2W | ≤ 500mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
DC 6V | 2.2W | ≤ 350mA | 30-100mLPM | 1.5-3.0LPM | ≥0.5ｍ |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the
details.
