Food grade pump 100 degC Low noise 30dB small medical pump for analytical instruments
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Other, Drinking water treatment, Family Homes, Food and Beverage Industry, Pharmaceutical industry, Food grade self-priming pump
Power Source:Electric
Pressure:Low Pressure
Structure:Diaphragm Pump
Outlet Size:6mm
Voltage:3/6/12/24v
Power:5W/7W
Standard or Nonstandard:Standard
Theory:Diaphrag pump
Low noise:Less than 30dB Far from 1m distance
Working temp.:90~100℃
Heavy duty work:Work a whole day continously
Material:PP/EPDM/PSU
Sample:Available
Certification:RoHS,ce
Products Description

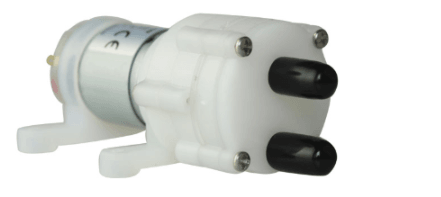

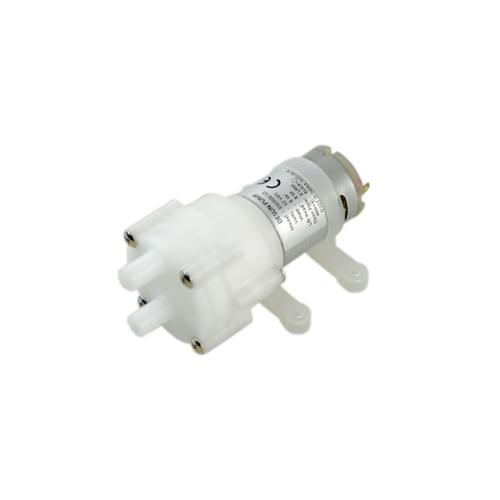

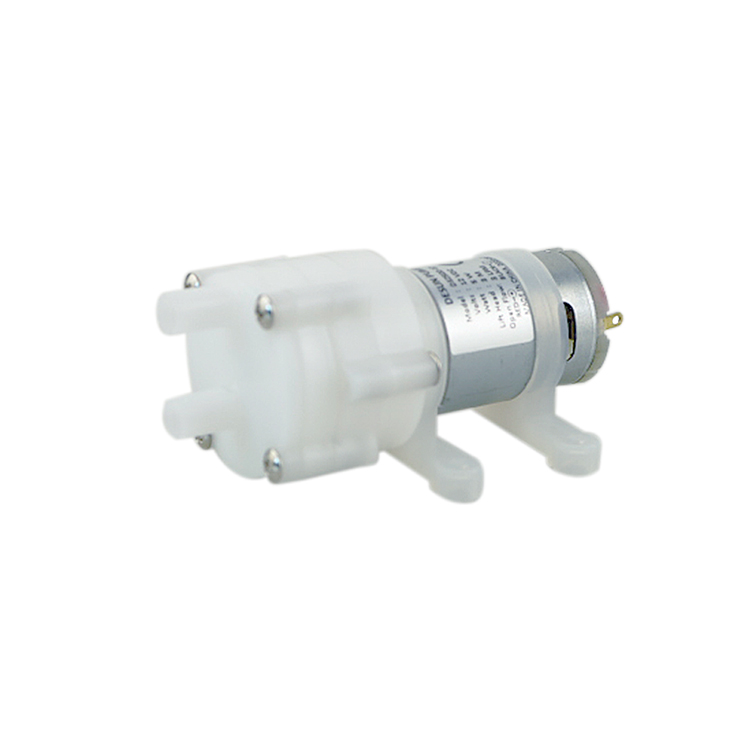

DS2500 FOOD GRADE ELECTRIC DIAPHRAGM PUMP
Features
1. Life: Expected life span is about 1year. 2. Low noise: ≤30dB, far from 1meter distance. 3. Working conditions: Applying to indoor and outdoor under temperature 40 deg C. 4. Working temperature: Within 90℃ ~ 100℃. Have suction function. can run continuously.
5. It can be powered directly by a Solar panel, DC electric source, or battery.
Application
1. Medical testing equipment, analytical instruments, environmental monitoring equipment, and so on. 2. Water dispenser, coffee machine, beverage machine. 3. Water ciculation system 4. Washing machines, water heater, other home appliances, etc...
Coffee Machine
Water Dispenser
Beverage Machine
Technical parameters
Model | Voltage | Flow | Power | Temp. |
DS2500 | 3/6/12/24V | 2 l/min 2.5 l/min | 5W 7W | 90℃ - 100℃ |
Notice: The tolerance of technical parameters above is ±5%. The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

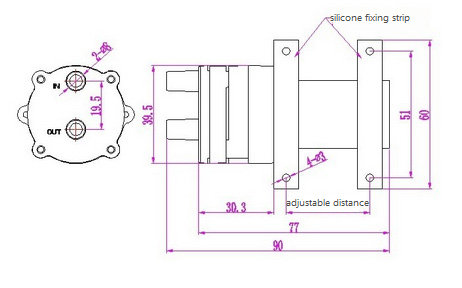

Structure dimensions
Model | Dimension(mm) | Inlet OD(mm) | Outlet OD(mm) |
DS2500 | 90*39.5*60 | 8/6 | 8/6 |
Our Advantages
Company Profile
Packaging
