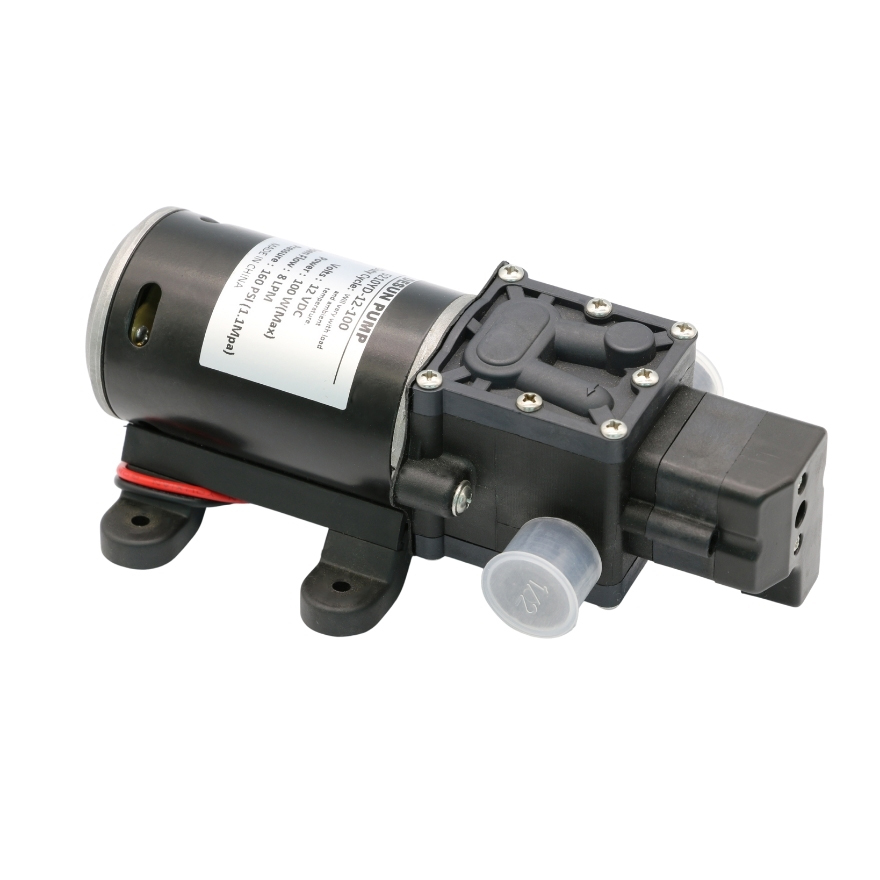

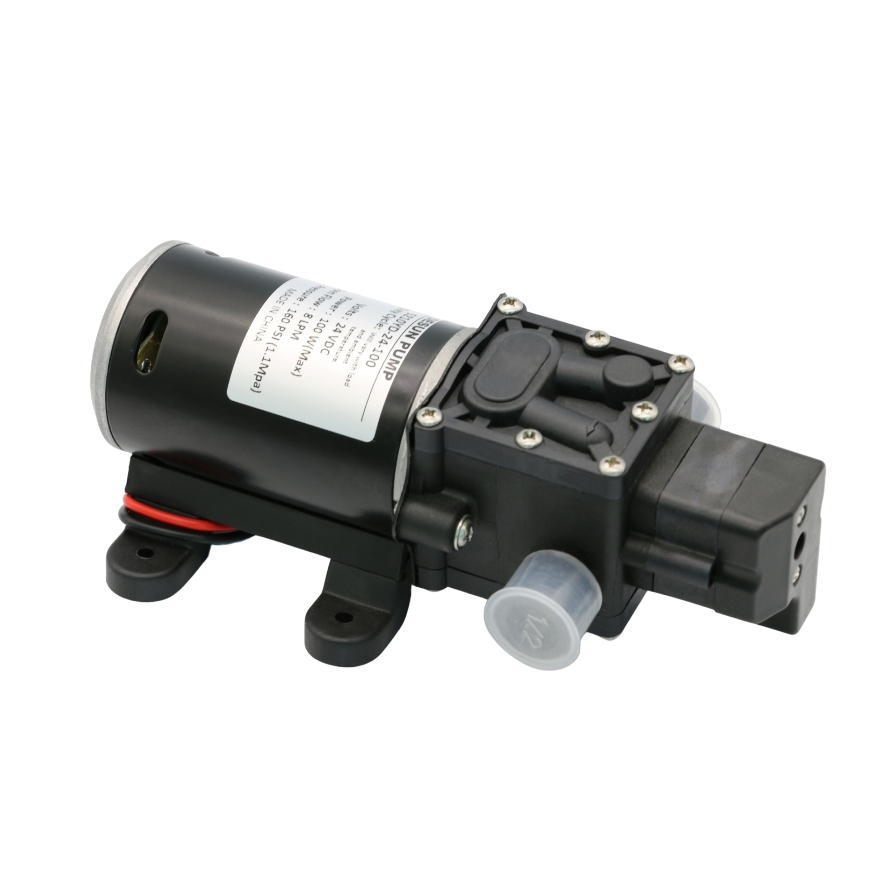

factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump
  • factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump
  • factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump
  • factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump
  • factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump
  • factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump

factory good quality mini water pump 12V Dc Diaphragm Electric Mini Water Pump

Model Number:5210YD-12-100/5210YD-24-100
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Commercial Buildings, Drinking water treatment, Family Homes, Irrigation and Agriculture, Machining, Washing and Cleaning
Horsepower:Desun standard
Power Source:Electric
Pressure:High Pressure
Structure:Diaphragm Pump
Cable Length:Desun standard
Outlet Size:30mm
Voltage:12V/24v
Power:100W
Product name:DC Water Pump
Long life:2000hours
weight:1.06kg
working temp:Less than 60℃
Suction lift:1.5M
Duty work:Work a whole day continously
Certification:CE,RoHS
更多详情

Products Description

MODEL EXPLANATION

Take "0152HA-12-15" as an example, 0152 represents the motor model, Y represents the pump's head type, A represents the interface type, 12 represents the voltage, and 15 represents the power.

TYPE Y INTELLIGENT PUMP HEAD

Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor; The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.

Application scope:

Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...

TYPE H REFLUX PUMP HEAD

Features:

When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve isopened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability.

Application scope:

High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.



INTERFACE TYPE EXPLANATION

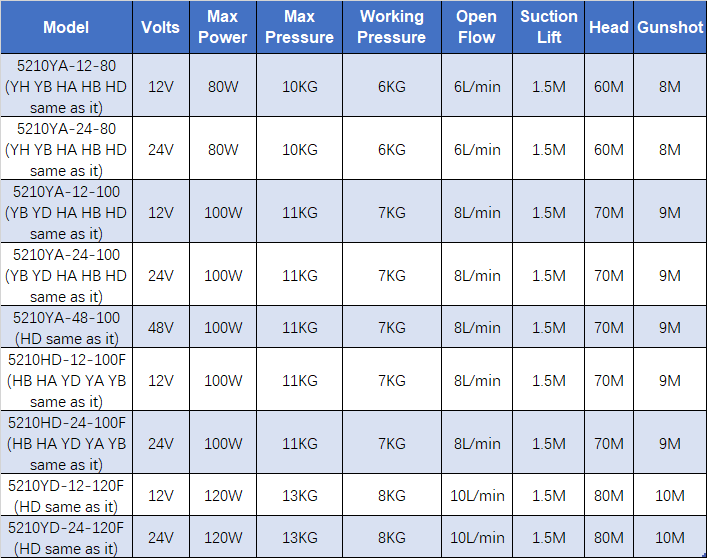

RELATED MODELS TECHNICAL PARAMETERS

* The technical parameters above are only a few for your reference.

* All models can be equipped with adapters.

* All models can be powered by solar power, DC power, solar panels, batteries, etc.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.

ATTENTION
* Do not use dirty water (silt in dirty water will cause irreversible damage to the pump). * Non-submersible pumps are not
waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after
use. * Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time. * Do not disassemble the water
pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be
fatal to the pump). * It is strictly forbidden to use this machine without the filter, and the density of the filter should be
above 80 mesh (impurities will cause damage to the pump). * The diameter of the spray hole must meet the specified value,
otherwise, the water pump will be damaged. * Please confirm the power supply before use, the power supply parameters must be
consistent with the pump input parameters
