DS2509 3~12v dc Brushless Motor Food grade Coffee Machine Water Dispenser Pump
Product name: Water pump
Model: DS2509HF
Working voltage: 3~12V(DC)
Max. flowrate: 2L/min
Max. head: 2M
Working temp: ≤100 ℃
Material: PPE
Water proof level: IP68
Noise: ≤30dB
Lifetime: 20000H
Inlet diameter: 10.1mm
Outlet diameter: 9.0mm
DS2509HF FOOD GRADE CENTRIFUGAL WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS2509HF |
Working voltage | 3~12V(DC) |
Max. flowrate | 2L/min |
Max. head | 2M |
Working temp. | ≤100 ℃ |
Material | PPE |
Water proof level | IP68 |
Noise | ≤30dB |
Lifetime | 20000H |
Inlet diameter | 10.1mm |
Outlet diameter | 9.0mm |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

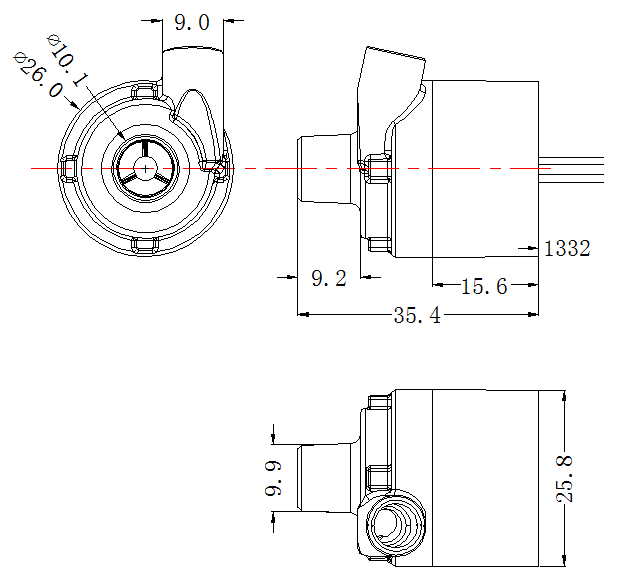

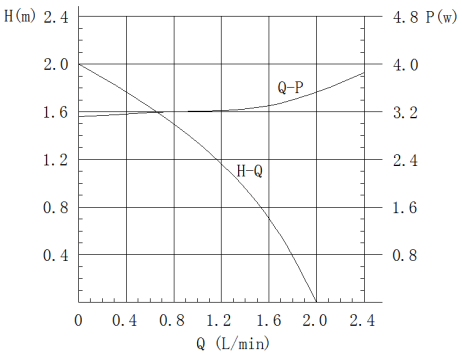

Dimensional drawing and working curve diagram
Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc...
We supply Full Customization Service, please contact us for the details.
Coffee Machine
Water Dispenser
Beverage Machine
