DESUN Factory Price Food Grade 12V 24V Micro DC Water Pump For Beverage Dispenser
Product name: Water pump
Model: DS4507NF
Working voltage: 12/24V(DC)
Max. flowrate: 10L/min
Max. head: 8M
Working temp: ≤70℃
Material: PPE
Water proof level: IP68
Noise: ≤40dB
Lifetime: 20000H
Inlet diameter: 9.6mm
Outlet diameter: 9.5mm

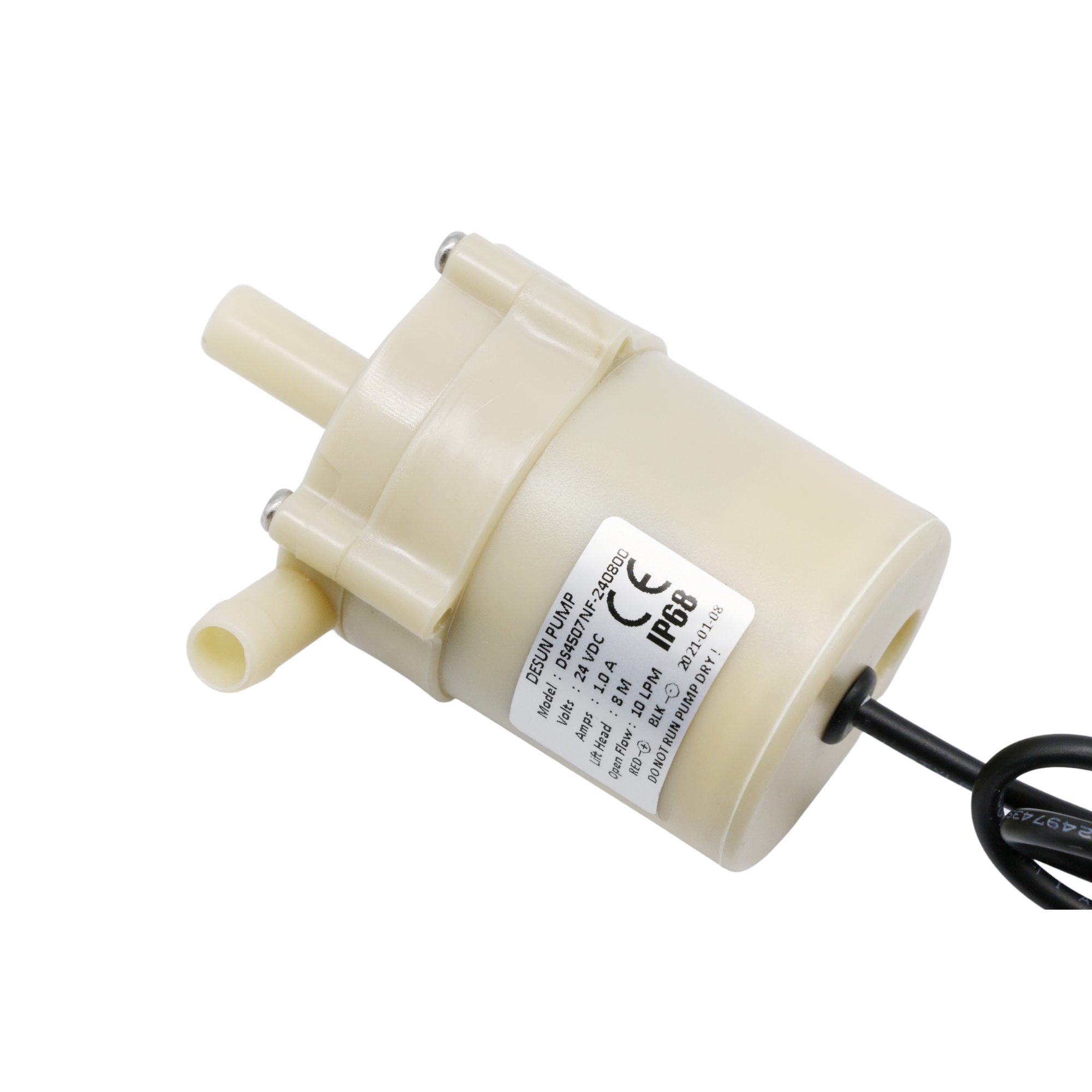

DS4507NF FOOD GRADE CENTRIFUGAL ELECTRIC WATER PUMP
Features
1. Brushless motor, long life span; Expected life span is about 20000 hours.
2. Low noise: ≤40dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install;
5. Epoxy potting, IP68 waterproof rating;
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft;
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS4507NF-1245 | 12 | 1.0 | 11 | 8 | 26.4 |
DS4507NF-2450 | 24 | 1.0 | 11 | 8 | 24 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

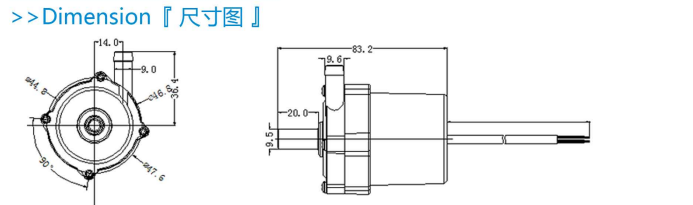

Dimensional drawing and working curve diagram

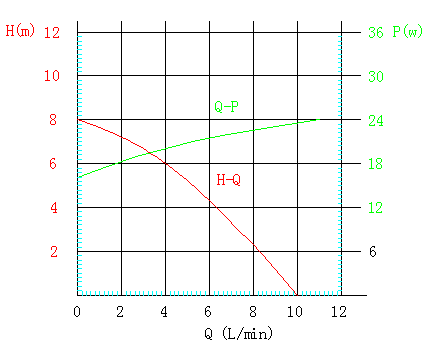

DS4507NF 12V

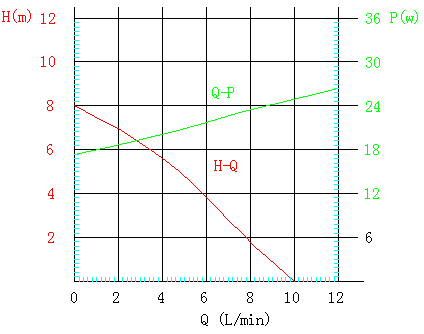

DS4507NF 24V
Coffee Machine
Water Dispenser
Beverage Machine
