DC Food grade High Temperature Centrifugal Water Circulating Pump Factory OEM
Product name : Water pump
Model : DS3303HF
Working voltage : 12/24V(DC)
Max. flowrate : 3L/min
Max. head : 4M
Working temp : ≤100 ℃
Materia l: PPE
Water proof level : IP68
Noise : ≤35dB
Lifetime : 20000H
Inlet diameter : 9.8mm
Outlet diameter : 6.8mm

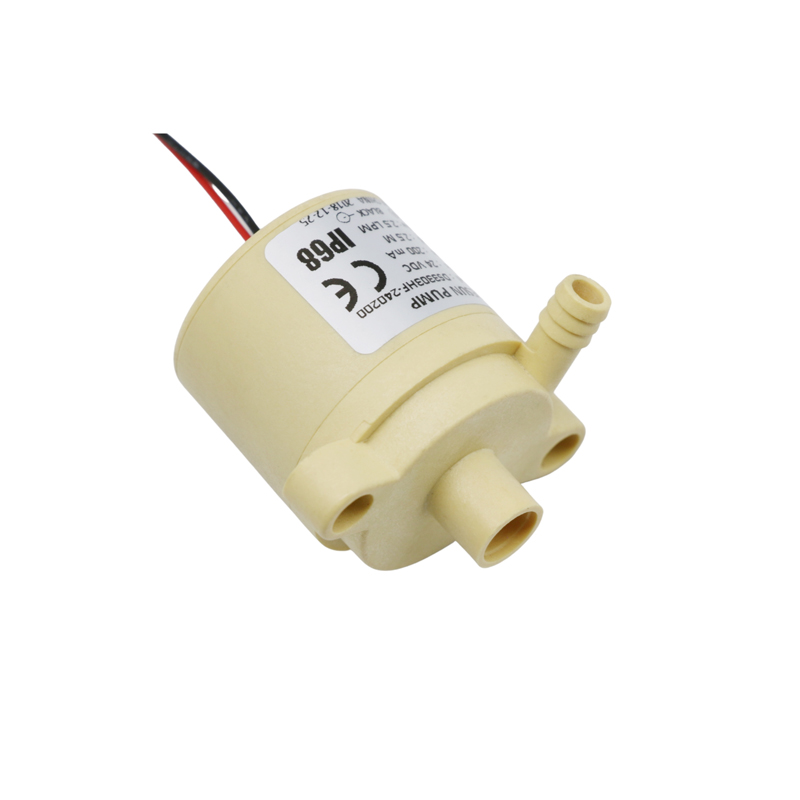

DS3303HF FOOD GRADE CENTRIFUGAL WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).

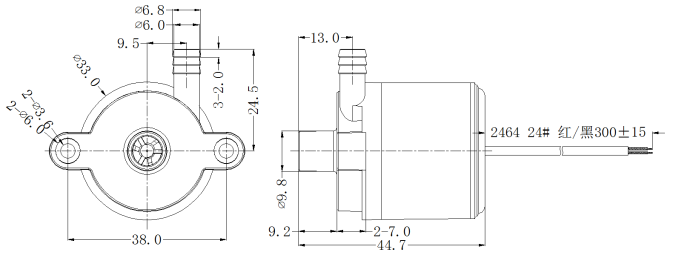

Dimensional drawing and working curve diagram
DS3305HF 12V
DS3305HF 24V
Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc...
We supply Full Customization Service, please contact us for the details.
