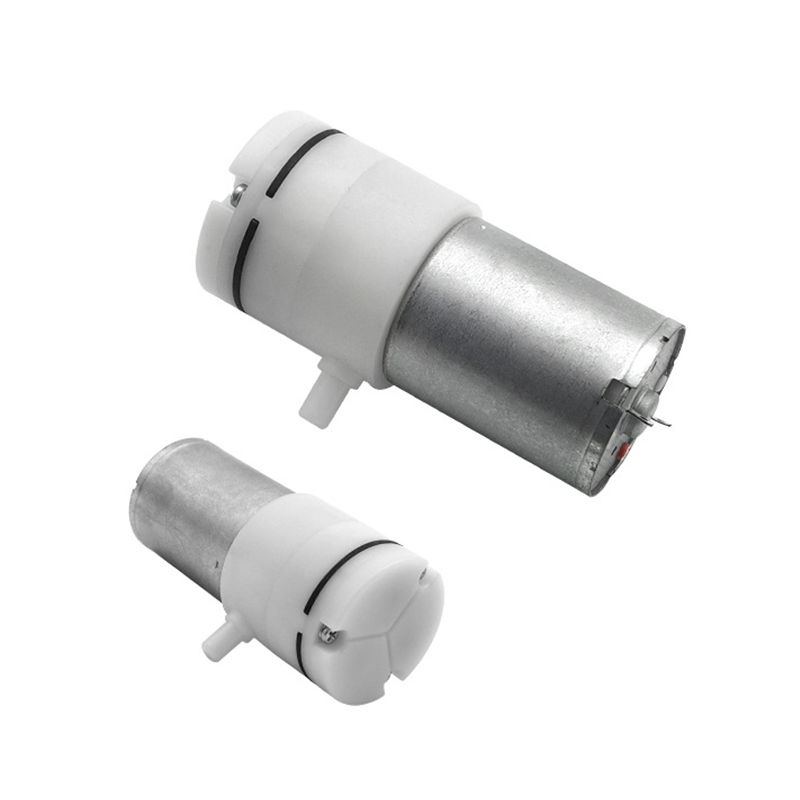

DC Brush Motor Mini Gas Diaphragm Air Pump/Micro Diaphragm Vacuum Pump
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSP370-XZC
Place of Origin: Guangdong, China
Application: Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
Power Source: Electric
Pressure: Low Pressure
Structure: Vacuum Pump
Outlet Size: 4.3mm
Voltage: 3V/3.7V/4.5V/6V/12V
Power: 1.8W
Product name: Vacuum Pump
Lifetime: >= 500 Hours
Noise: ≤65dB (30cm away)
Duty work: Work a whole day continously
Charateristic: Light weight,no spark,etc.
Vacuum flow: 1.0 - 3.5 LPM
Maximum Pressure: =< -60Kpa (-450mmHg)
Rated voltage: 3V/3.7V/4.5V/6V/12V
Certification: RoHS,ce
DSP370-XZC VACUUM PUMP
Features
1. Life: Expected life span is over 500 Hours.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
7. One week for samples, two week for bulk order.
8. Factory price + high quality + good after-sales service
Related Parameters (The technical specification only for reference, it can be customized)
Voltage(V) | Power | Rated Current | tap O.D. | Vacuum flow | Maximum Pressure |
DC 3V | 1.8W | ≤ 600mA | Dia 4.3mm | 1.0 - 3.5 LPM | ≤ -60 Kpa |
DC 3.7V | 1.8W | ≤ 500mA | Dia 4.3mm | 1.0 - 3.5 LPM | ≤ -60 Kpa |
DC 4.5V | 1.8W | ≤ 400mA | Dia 4.3mm | 1.0 - 3.5 LPM | ≤ -60 Kpa |
DC 6V | 1.8W | ≤ 300mA | Dia 4.3mm | 1.0 - 3.5 LPM | ≤ -60 Kpa |
DC 12V | 1.8W | ≤ 150mA | Dia 4.3mm | 1.0 - 3.5 LPM | ≤ -60 Kpa |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
We supply Full Customization Service, please contact us for the details.
