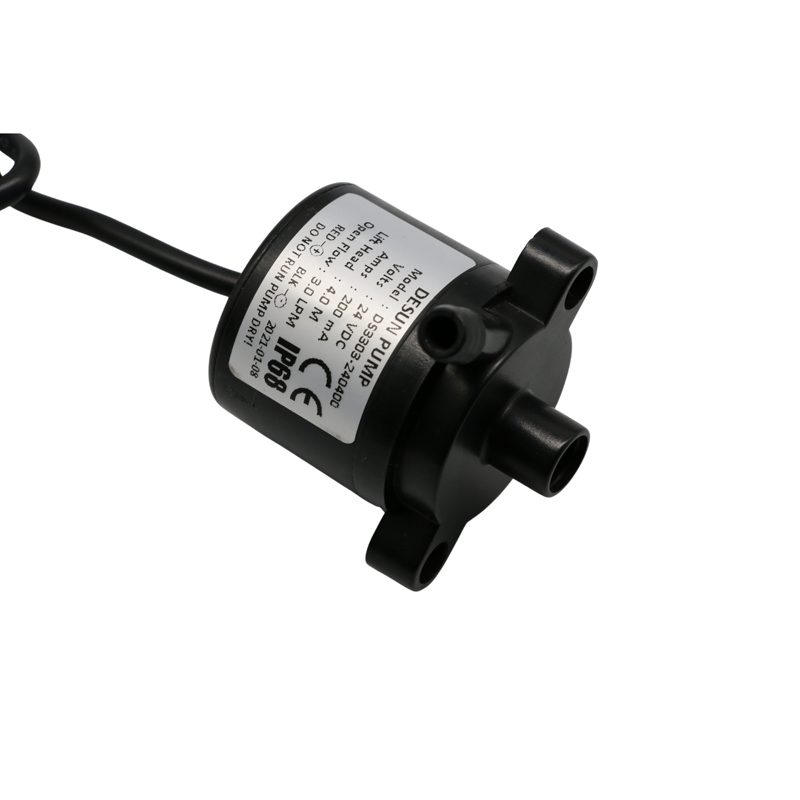

Brushless DC Micro electric Submersible smart water pump For Desktop Fountain
Product name: Water pump
Model: DS3303
Working voltage: 12/24V
Max. flowrate: 3L/min
Max. head: 4M
Working temp: ≤75 ℃
Material: ABS
Water proof level: IP68
Noise: ≤35dB
Lifetime: 20000H
Inlet diameter: 9.8mm
Outlet diameter: 6.8mm
DS3303 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS3303 |
Working voltage | 12/24V |
Max. flowrate | 3L/min |
Max. head | 4M |
Working temp. | ≤75 ℃ |
Material | ABS |
Water proof level | IP68 |
Noise | ≤35dB |
Lifetime | 20000H |
Inlet diameter | 9.8mm |
Outlet diameter | 6.8mm |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS3303-0515 | 5 | 0.5 | 1.5 | 1.5 | 2.5 |
DS3303-0625 | 6 | 0.5 | 2 | 2.5 | 3 |
DS3303-0930 | 9 | 0.5 | 2.5 | 3 | 4.5 |
DS3303-1235 | 12 | 0.6 | 3 | 3.5 | 6.6 |
DS3303-2435 | 24 | 0.2 | 3 | 4 | 7.68 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
DS3303 12V
DS3303 24V
