3V 12V Self-priming 150Kpa 3.5LPM DC Miniature suction Air Pump For Medical Machines
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSP370-XB
Place of Origin: Guangdong, China
Application: Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
Power Source: Electric
Pressure: Low Pressure
Structure: Diaphragm Pump
Outlet Size: 4.2mm
Voltage: 3V/6V/9V/12V/24V
Power: 2.4W
Product name: AIR PUMP
Lifetime: >= 30000times
Noise: ≤60dB (30cm away)
Duty work: Work a whole day continously
Charateristic: Light weight,no spark,etc.
Air flow: 0.5-2.5 LPM
Maximum Pressure: >=750mmHg(100Kpa)
Rated voltage: 3V 6V 9V 12V 24V
Certification: RoHS ce

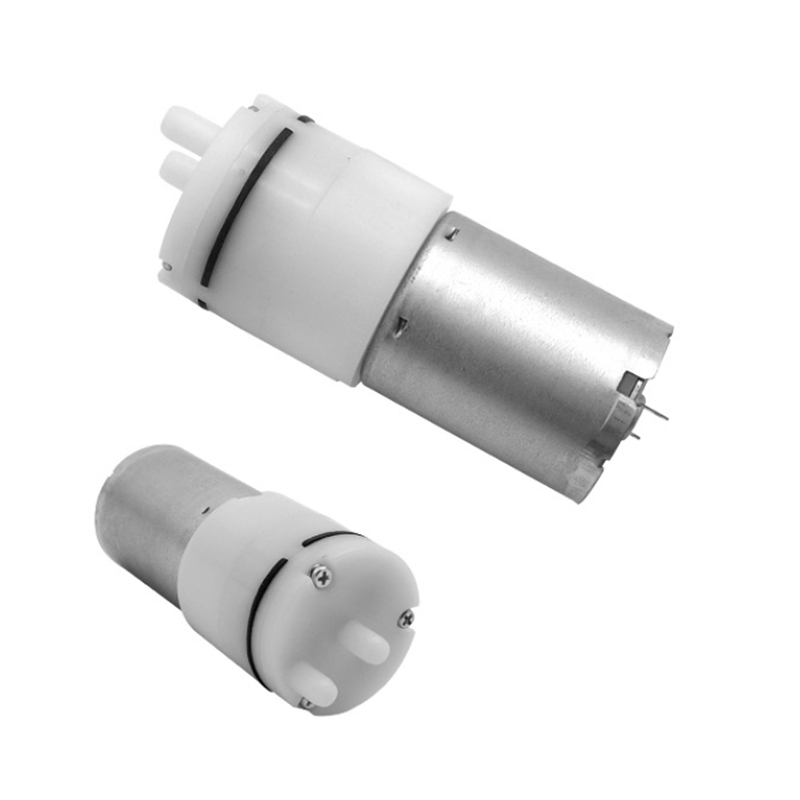

DSP370-XB Mini air Pump
Features
1. Life: Expected life span is over 50,000 Times.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
7. One week for samples, two week for bulk order.
8. Factory price + high quality + good after-sales service
Related Parameters (The technical specification only for reference, it can be customized)
Voltage(V) | Power | Rated Current | Air tap O.D. | Air flow | Maximum Pressure |
DC3V | 2.4W | ≤ 900mA | Dia 4.2mm | 1 - 3.5 LPM | ≥100KPa |
DC 6V | 2.4W | ≤ 450mA | Dia 4.2mm | 1 - 3.5 LPM | ≥100KPa |
DC 9V | 2.4W | ≤ 300mA | Dia 4.2mm | 1 - 3.5 LPM | ≥100KPa |
DC 12V | 2.4W | ≤ 220mA | Dia 4.2mm | 1 - 3.5 LPM | ≥100KPa |
DC 24V | 2.4W | ≤ 110mA | Dia 4.2mm | 1 - 3.5 LPM | ≥100KPa |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,
vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair
outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
We supply Full Customization Service, please contact us for the details.
