0152YB-24-70S Diaphragm pump Suction Water Pump

<sub>Mainly used for Food and Beverage industry, such as wine, milk, potion, soy milk, drinking water, milk tea, edible oil and other liquids

Power from 15w~80w , flowrate from 1.5l/min ~6l/min can be adjust for you .

MODEL EXPLANATION

Take "5210HD-12-100" as an example, 5210 represents the motor model, H represents the pump's head type, D represents the interface
type, 12 represents the voltage, and 100 represents the power.</sub>

The pump's head type and the interface can be freely replaced, please contact us for the details.

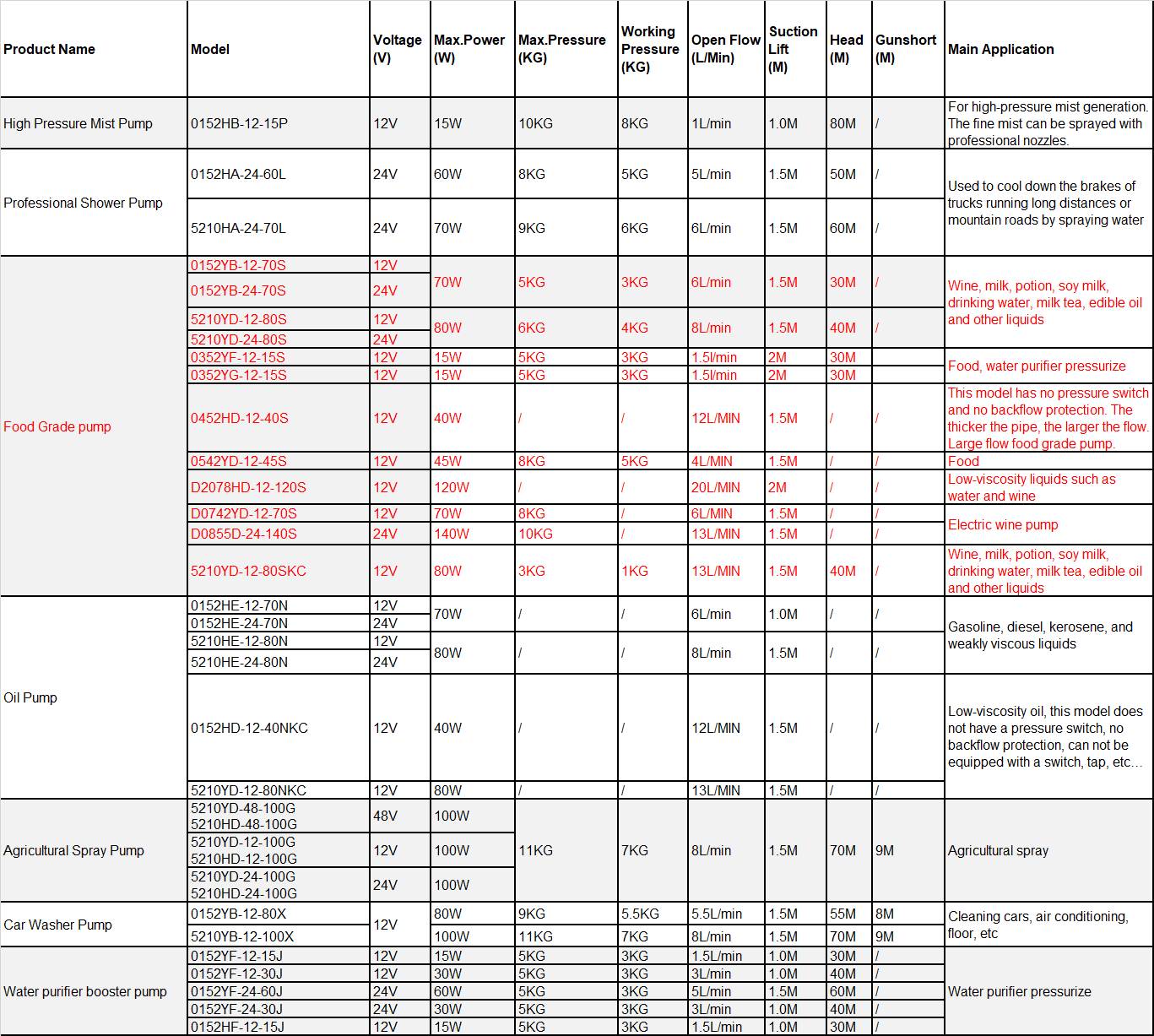

RELATED MODELS TECHNICAL PARAMETERS

* The technical parameters above are only a few for your reference. * All models can be equipped with adapters. * All models can be powered by solar power, DC power, solar panels, batteries, etc.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.

ATTENTION
* Do not use water or dirty water whose temperature exceeds 60℃ (silt in dirty water will cause irreversible damage to the pump).
* Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in
water. Dry the pump body after use. * Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw
without authorization may be fatal to the pump). * It is strictly forbidden to use this machine without the filter, and the
density of the filter should be above 80 mesh (impurities will cause damage to the pump). * The diameter of the spray hole must
meet the specified value, otherwise, the water pump will be damaged. * Please confirm the power supply before use, the power
supply parameters must be consistent with the pump input parameters

We supply Full Customization Service, please contact us for the details.
