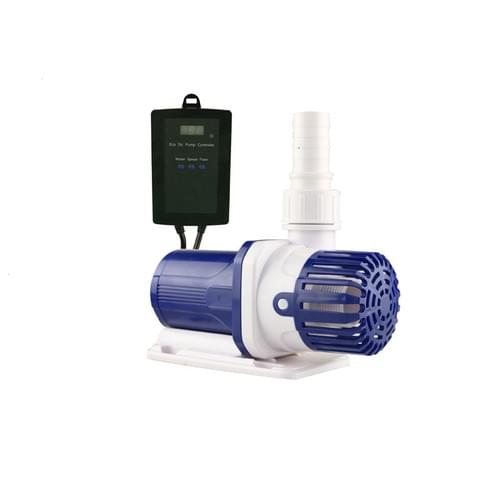

24V dc submersible pond aquarium oxygen aerator air pump for fish tank
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Other, Family Homes, Industrial Utilities, Water Distribution, Water Treatment Solutions
Horsepower:Desun standard
Power Source:Electric
Pressure:Low Pressure
Structure:Single-stage Pump
Voltage:24V
Power:35~75W
Product name:Submersible Water Pump
Standard or Nonstandard:Standard
Theory:Centrifugal Pump
Lifetime:Over 30000 hours
Low noise:≤35dB
Flowrate:3000~5000L/min
Duty work:Work a whole day continously
Certification:CE,RoHS
Products Description
Features
1. Products have three modes: constant current speed regulation mode, wave mode, feeding mode. The maximum water volume of DS40Q is 4000L/H, and DS52Q 5000L/H, DS55Q 8000L/H, DS65Q 12,000L/H. The power is adjustable so that it can be applied to all kinds of aquarium and fish tanks. 2. Real low voltage brushless dc frequency conversion control technology, using the most advanced level l6 no sensor three intelligent drive, by adjusting the duty cycle(PWM) to change the pump speed and power, soft start, safe and reliable life long, low noise. 3. The pump is low voltage DC 24v, safe and reliable, high efficiency, small size; 4. The pump power adapter is wide voltage input(a~AC/60hz). It can be suitable for many kinds of the power grid and can avoid voltage fluctuation the influence on the wave-making; 5. Ceramic core shaft, carbon fiber sleeve, ensure the long service life of the pump; 6. Applicable to fresh water and seawater; 7. The water pump can be in the water at the same time to achieve wave function.
Related model technical parameters

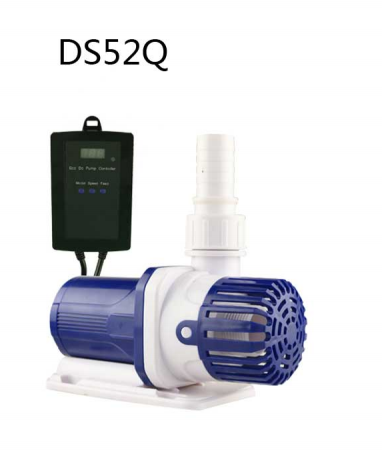

Model | DS40Q-1000L | DS40Q-1500L | DS40Q-2000L | DC52Q-3000L | DC52Q-4000L | DC52Q-5000L |
Flow rate | 1000L/H | 1500L/H | 2000L/H | 3000L/H | 4000L/H | 5000L/H |
Head | 2.5M | 3M | 3.5M | 3M | 4M | 5M |
Max consumption | 13W | 18W | 20W | 35W | 55W | 70W |
Min consumption | 5W | 5W | 5W | 6W | 10W | 10W |
Voltage | DC24V | DC24V | ||||
Dimension | 126*123*67MM | 170*167*79MM | ||||
Outlet/Inlet | 15mm/20mm | 20mm/25mm | ||||
Model | DS55Q-6000L | DS55Q-7000L | DS55Q-8000L | DS65Q-10000L | DS65Q-12000L | |
Flow rate | 6000L/H | 7000L/H | 8000L/H | 10000L/H | 12000L/H | |
Head | 4M | 4.5M | 5M | 4M | 5M | |
Max consumption | 55W | 70W | 85W | 85W | 100W | |
Min consumption | 10W | 10W | 10W | 10W | 10W | |
Voltage | DC24V | DC24V | ||||
Dimension | 170*167*79MM | 206*177*93MM | ||||
Outlet/Inlet | 25MM/32MM | 25MM/32MM |
You can tell us where you use the pump if don't know how to choose the pumps, then we'll suggest you some suitable ones.

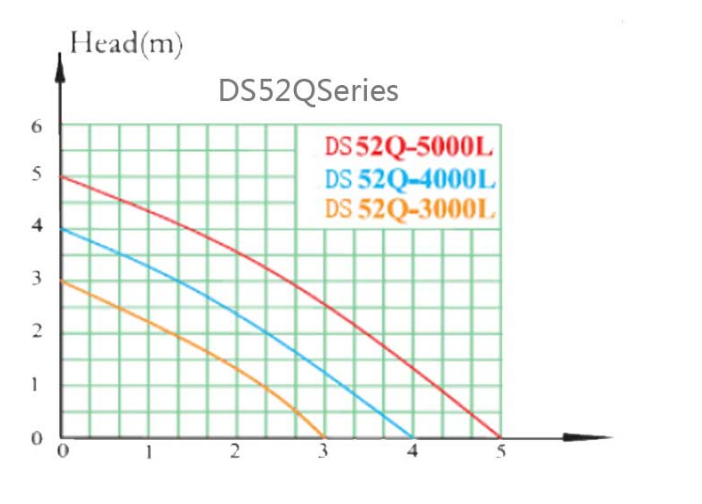

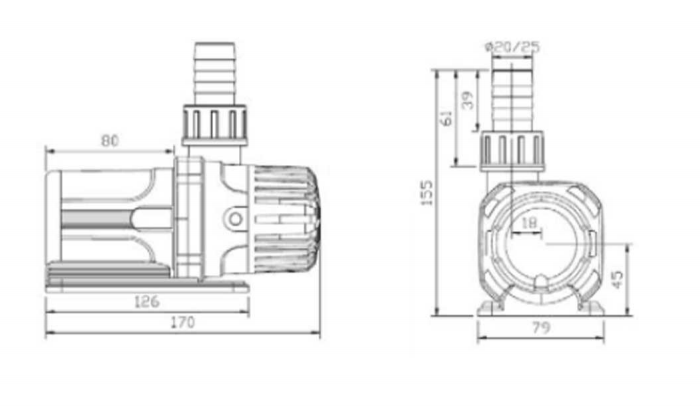

Dimensional drawing and working curve diagram
Application scope
Widely used in electric automotive cooling systems, automated equipment water cycle, water cooling and other electrical appliances, water dispenser, sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump, aquarium fish tank,desktop crafts, foot bath, plumbing mattresses, water heaters, PC water cooling, water cooling fan, medical devices, pharmaceutical systems, chemical circulation systems,cooling system, water-cooled air-conditioning, water cooling fan, mobile bath, solar fountain, solar circulation system, water supply systems, small irrigation systems, water treatment systems, automobile circulation systems, automotive heating systems, machine tools, household appliances, kitchen appliances, bathroom products, hot water circulation system.
We supply Full Customization Service, please contact us for the details.
Attention
1.In order to ensure product performance, no water operation is prohibited. 2.Control the installation position of the box, pay attention to waterproof, prevent spray splashing into the control box. 3.Non-professional staff, please do not casually open the control box and adapter, so as the avoid damage.
