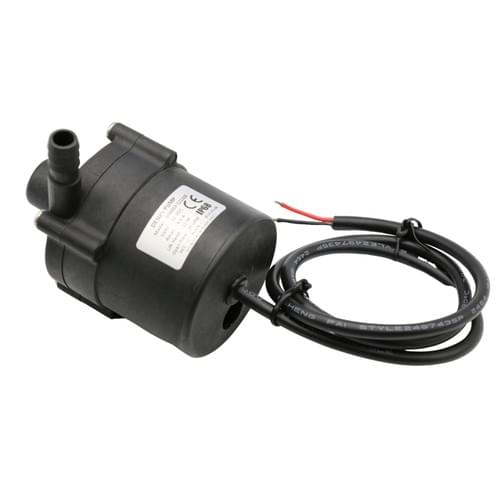

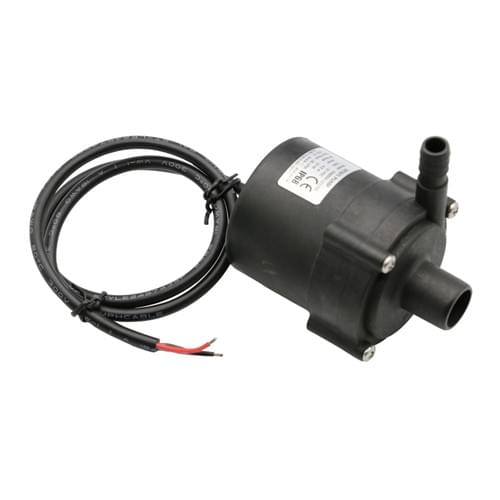

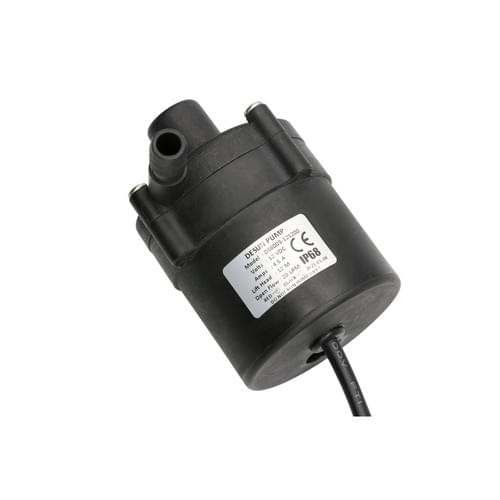

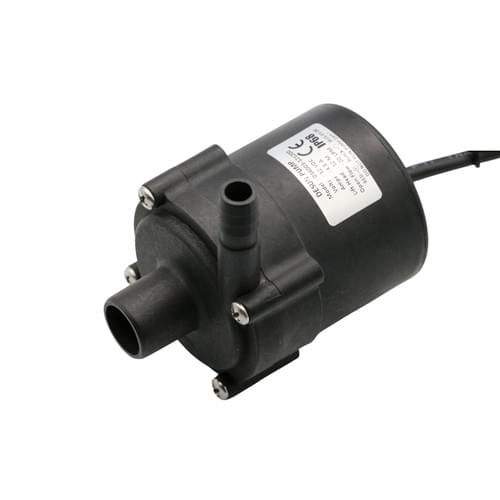

2022 12V or 24v DC brushless motor DS6003 Centrifugal DC Mini Water Pump
Model: DS6003
Working voltage: 12V/24V
Max. flowrate: 23L/min
Max. head: 13M
Working temp: ≤100℃
Material: PPE/PPS
Water proof level: IP68
Noise: ≤45dB
Lifetime: 20000H
Inlet diameter: 20.4mm
Outlet diameter: 11.5mm
DS6003 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS6003-241300 | 24 | 2.2 | 23 | 13 | 55 |
DS6003-241500 | 24 | 3.3 | 23 | 15 | 79 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

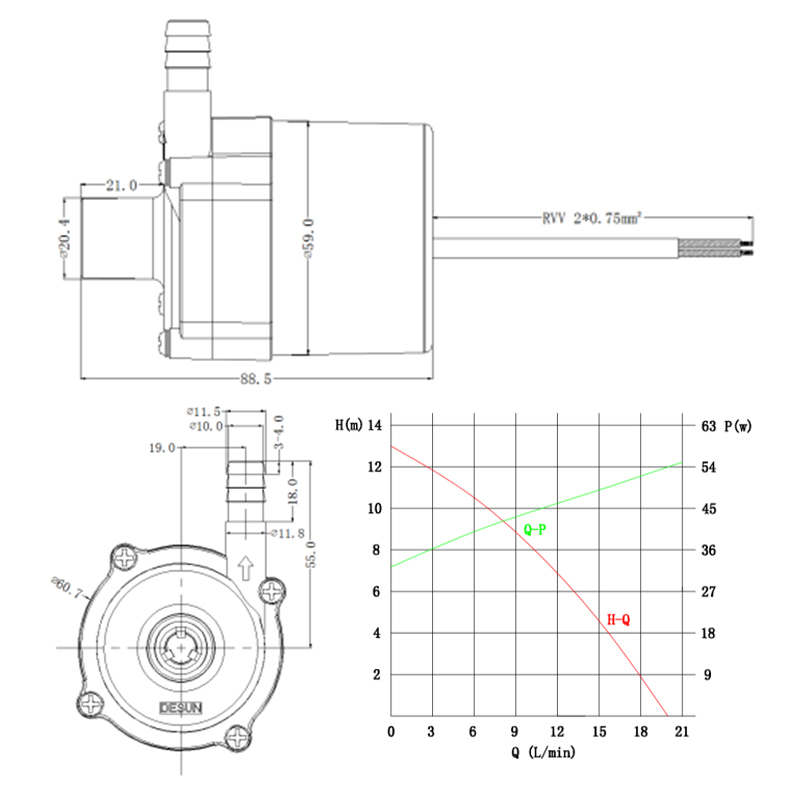

Dimensional drawing and working curve diagram
DS3502 12V
DS3502 24V
Widely used for hydroponics,
