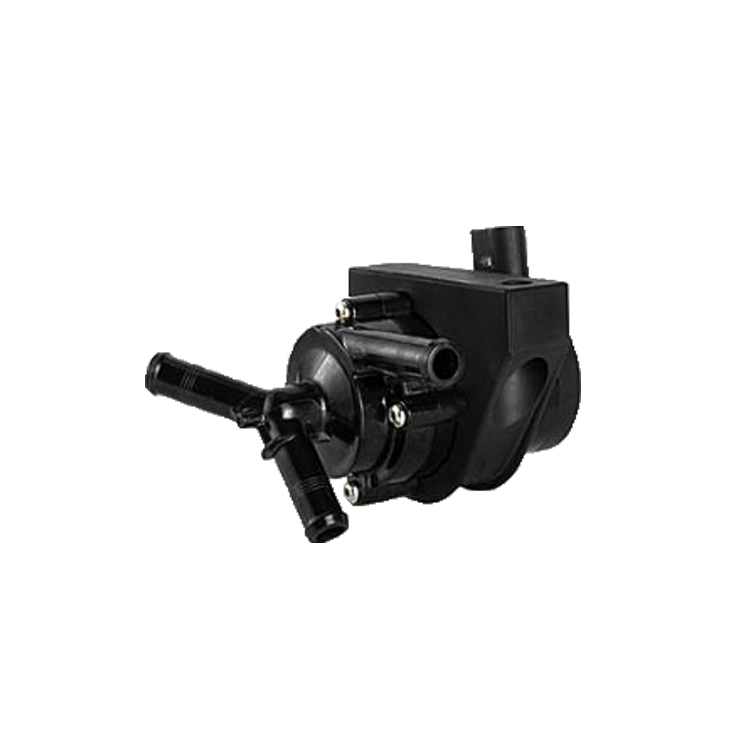

18W high efficiency low noise dc water pump automotive electric water pump
Customized support:OEM, ODM
Brand Name:DESUN
Place of Origin:Guangdong, China
Application:Automotive Industry, Biofuel Industry, Commercial Buildings, District Energy, Family Homes, Industrial Utilities, Mining industry, Turbocharger cooling
Horsepower:Desun standard
Power Source:Electric
Pressure:High Pressure
Structure:Single-stage Pump
Cable Length:Desun standard
Outlet Size:12mm
Voltage:12.5V
Power:18W
Type:electric pump
Power supply:Electric
waterproof level:IP67
Weight:330g
lifetime:>=20000h
Sample:Available
Certification:CE,RoHS
Products Description
Features
1 This is mainly used for turbocharger cooling
2 This water pump has small power and long life
3 The DC brushless motor has good reliability, high efficiency and energy saving, and low noise
4 control mode: ON / OFF
5 Over-temperature protection: When the water pump exceeds the operation range, the water pump returns to normal operation when
the temperature returns to the appropriate operation range
6 reverse connection protection: positive and negative pole connection reverse water pump will automatically power off protection
Technical parameters
Working medium: antifreeze
Ambient temperature: -40℃~+150℃
Medium temperature: -40℃~+125℃,
Rated voltage: DC12.5V Voltage range: DC8V~DC16V
Weight: 330g
Life: ≥20000h
Protection level: IP67
Protection function: overheat protection
More technical parameters
Model | Volts (V) | Flow (LPM) | Head (M) | Power (W) | inlet/outlet (mm) |
DSP33-2XX | 12.5V | 7 | 1.5 | 18 | 12 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
Widely used for mini aquarium,mini fish tank water circulation, desktop fountain, handicraft decoration water cycle, humidifier, medical equipment, beauty equipment.
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
