135L/min 10M hot sales DC Brushless pump solar water pump for agriculture
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Commercial Buildings, Family Homes, HVAC OEM, Irrigation and Agriculture, Machining, Mining industry, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
Power Source:Electric
Pressure:1.0bar
Structure:Single-stage Pump
Outlet Size:38mm
Voltage:12V/24V/36V
Power:80/120W
Waterproof level:IP68
Theory:Centrifugal Pump
Material:PPE/PPS
Lifetime:Over 20000 hours
Noise:≤35dB
Duty work:Work a whole day continously
Certification:CE,RoHS

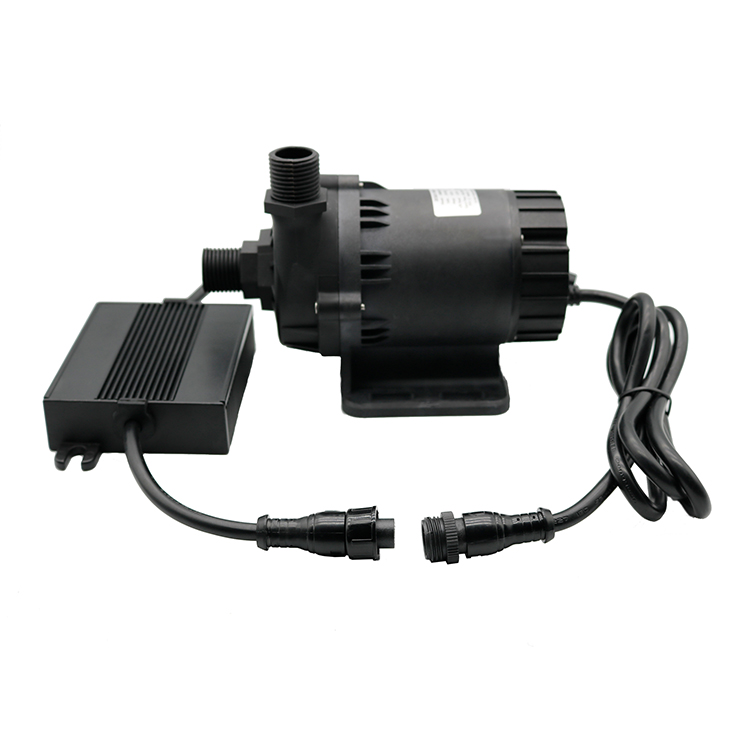

DS6505 CENTRIFUGAL ELECTRIC SUBMERSIBLE WATER PUMP
Features
1. Small size, lightweight, easy to install; 2. Epoxy potting, IP68 waterproof rating; 3. Brushless motor, long life span; 4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS6505 |
Working voltage | 12V/24V/36V |
Max. flowrate | 65L/min |
Max. head | 12M |
Working temp. | ≤100℃ |
Material | PPE/PPS |
Water proof level | IP68 |
Noise | ≤35dB |
Lifetime | 20000H |
Inlet diameter | G1/2 |
Outlet diameter | G1/2 |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS6505-12100S | 12 | 6.6 | 55 | 10 | 80 |
DS6505-24120S | 24 | 5.0 | 65 | 12 | 120 |
DS6505-36120S | 36 | 3.3 | 65 | 12 | 120 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

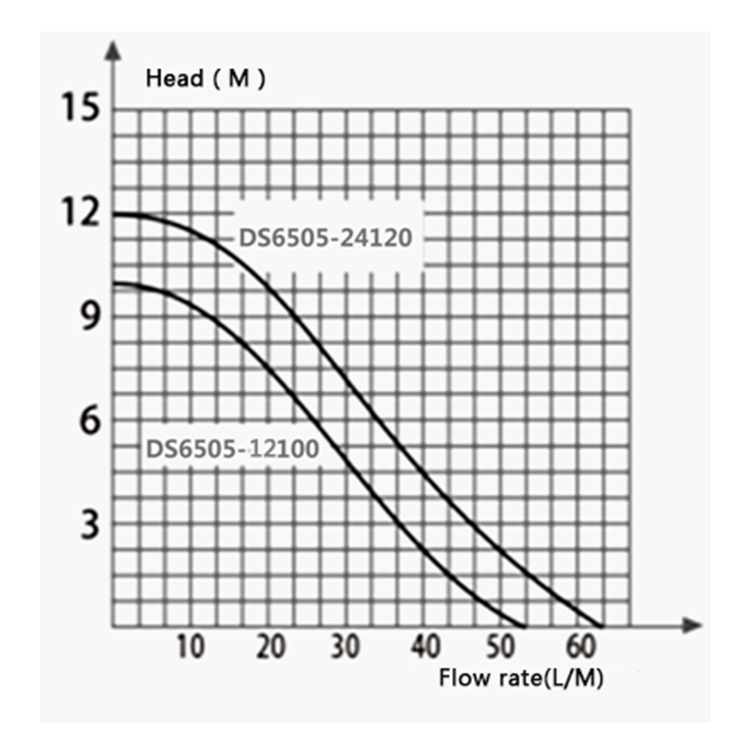

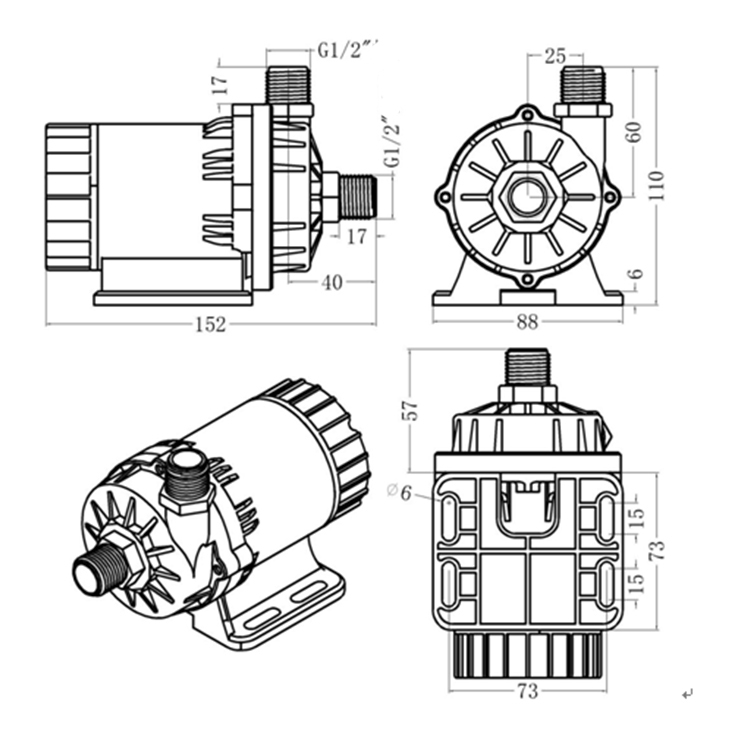

Dimensional drawing and working curve diagram
DS3502 12V
DS3502 24V
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
