12V24V DC Brushless electric oil pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Family Homes, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
Horsepower:28w
Power Source:Electric
Pressure:0.6bar
Structure:Single-stage Pump
Outlet Size:can optional
Voltage:12V / 24V
Power:28w
Long life:Over 20000 hours
waterproof level:IP68
Low noise:≤45dB
Workig temp.:≤100℃
inlet diameter:R1/2
materail:PPS
Charateristic:Light weight,no spark,etc.
Certification:RoHS,ce

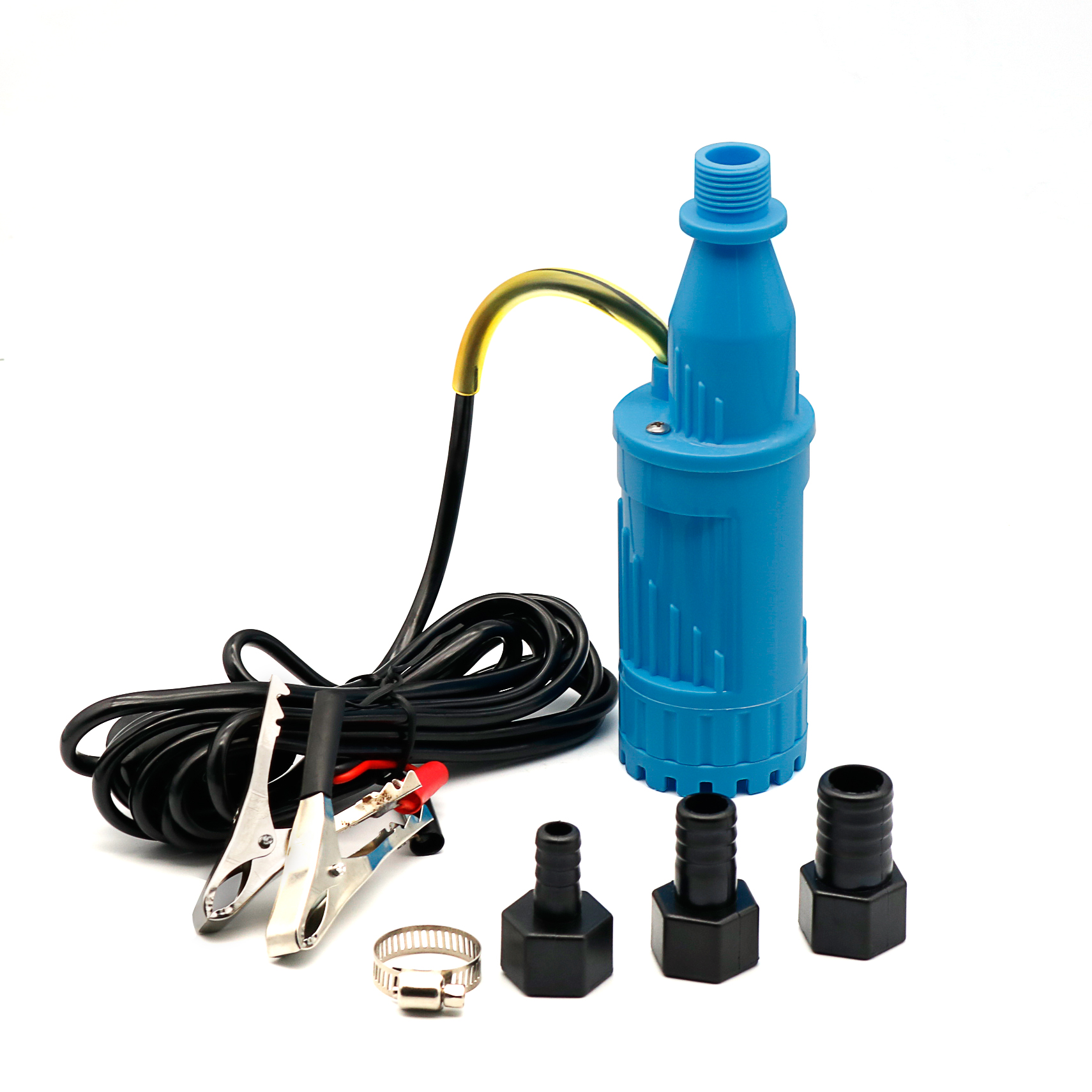

DS3909 Brushless dc electric oil pump
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours. 2. Low noise: ≤45dB, far from 1meter distance. 3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation. 4. Small size, lightweight, easy to install； 5. Epoxy potting, IP68 waterproof rating； 6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection; 7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS3909 |
Working voltage | 12/24V(DC) |
Max. flowrate | 16L/min |
Max. head | 6M |
Material | ABS |
Water proof level | IP68 |
Noise | ≤45dB |
Lifetime | 20000H |
Inlet diameter | R1/2 |
Outlet diameter | R1/2 |
Related model technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head (M) | Power (W) |
DS3909-12 | 12 | 2.4 | 16 | 6 | 28 |
DS3909-24 | 24 | 1.2 | 16 | 6 | 28 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
