12V24V 80W 8L Corrosion-resistant Electric Diaphragm Suction Pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Other, Automotive Industry, Commercial Buildings, Developing World Water Solutions, Family Homes, Industrial Utilities, Irrigation and Agriculture, Washing and Cleaning, Water Distribution, Water Treatment Solutions
Horsepower:70w
Power Source:Electric
Pressure:High Pressure
Structure:Diaphragm Pump
Cable Length:30cm
Outlet Size:M18
Voltage:12V/24V
Power:70W
Product name:Oil Pump
Theory:Diaphragm Pump
Fuel:DC electric source,Battery.
Standard or Nonstandard:Standard
Lifetime:5 years
Suction lift:1M
Weight:0.7Kg
Heavy duty work:Work a whole day continously
Liquid:Oil etc
Certification:ce

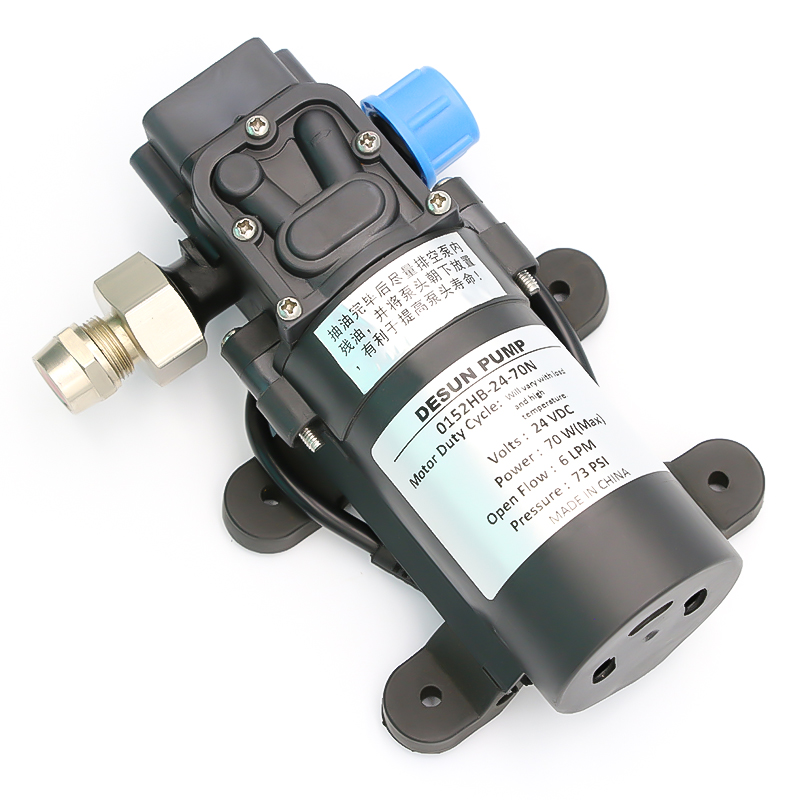

0152HB-12-70N/0152HB-24-70N PUMP
(for gasoline, diesel, kerosene, and weakly viscous liquids)
MODEL EXPLANATION
Take "0152HB-24-70" as an example, 0152 represents the motor model, H represents the pump's head type, B represents the interface type, 24 represents the voltage, and 70 represents the power.
Feature
High pressure, long life, reliable performance, Motor pump normal life is five years! Warranty time:1year(Under normal use and service from the date of purchase) Name: Electric oil pump Structure: diaphragm pump Material: Pump skull for oil-resistant plastic materials(TPV), safety explosion-proof motor。
TECHNICAL PARAMETERS
Model | Voltage | Max.Power | Open Flow | Suction Lift |
0152HB-12-70N | 12V | 70W | 6L/min | 1.0M |
0152HB-24-70N | 24V | 70W | 6L/min | 1.0M |
PUMP'S HEAD TYPE EXPLANATION
TYPE Y INTELLIGENT PUMP HEAD
Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor; The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.
Application scope:
Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability. Application scope:
High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.
INTERFACE TYPE EXPLANATION
The pump's head type and the interface can be freely replaced, please contact us for the details.
RELATED MODELS TECHNICAL PARAMETERS
* The technical parameters above are only a few for your reference.
* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.
We supply Full Customization Service, please contact us for the details.
