12v heating water circulation food machine water pump for coffee vending
Product name: Water pump
Model: DS3301HF
Working voltage: 12/24V(DC)
Max. flowrate: 3L/min
Max. head: 4M
Working temp: ≤100 ℃
Material: PPE
Water proof level: IP68
Noise: ≤35dB
Lifetime: 20000H
Inlet diameter: 9.8mm
Outlet diameter: 6.8mm

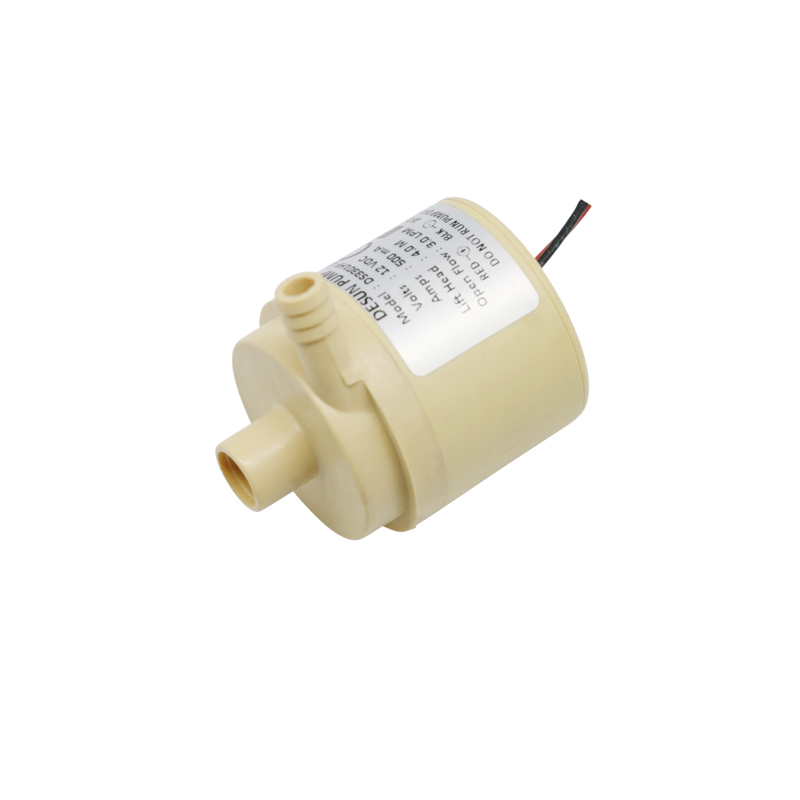

DS3301HF FOOD GRADE CENTRIFUGAL WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
Product name | Water pump |
Model | DS3301HF |
Working voltage | 12/24V(DC) |
Max. flowrate | 3L/min |
Max. head | 4M |
Working temp. | ≤100 ℃ |
Material | PPE |
Water proof level | IP68 |
Noise | ≤35dB |
Lifetime | 20000H |
Inlet diameter | 9.8mm |
Outlet diameter | 6.8mm |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Related models technical parameters
Model | Volts (V) | Amps (A) | Flow (LPM) | Head(M) | Power (W) |
DS3301HF-0515 | 5 | 0.5 | 1.5 | 1.5 | 2.5 |
DS3301HF-0625 | 6 | 0.5 | 2 | 2.5 | 3 |
DS3301HF-0930 | 9 | 0.5 | 2.5 | 3 | 4.5 |
DS3301HF-1235 | 12 | 0.55 | 3 | 3.5 | 6.6 |
DS3301HF-2435 | 24 | 0.3 | 3 | 4 | 7.2 |
Dimensional drawing and working curve diagram
DS3301HF 12V
DS3301HF 24V
Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc...
We supply Full Customization Service, please contact us for the details.
Coffee Machine
Water Dispenser
Beverage Machine
