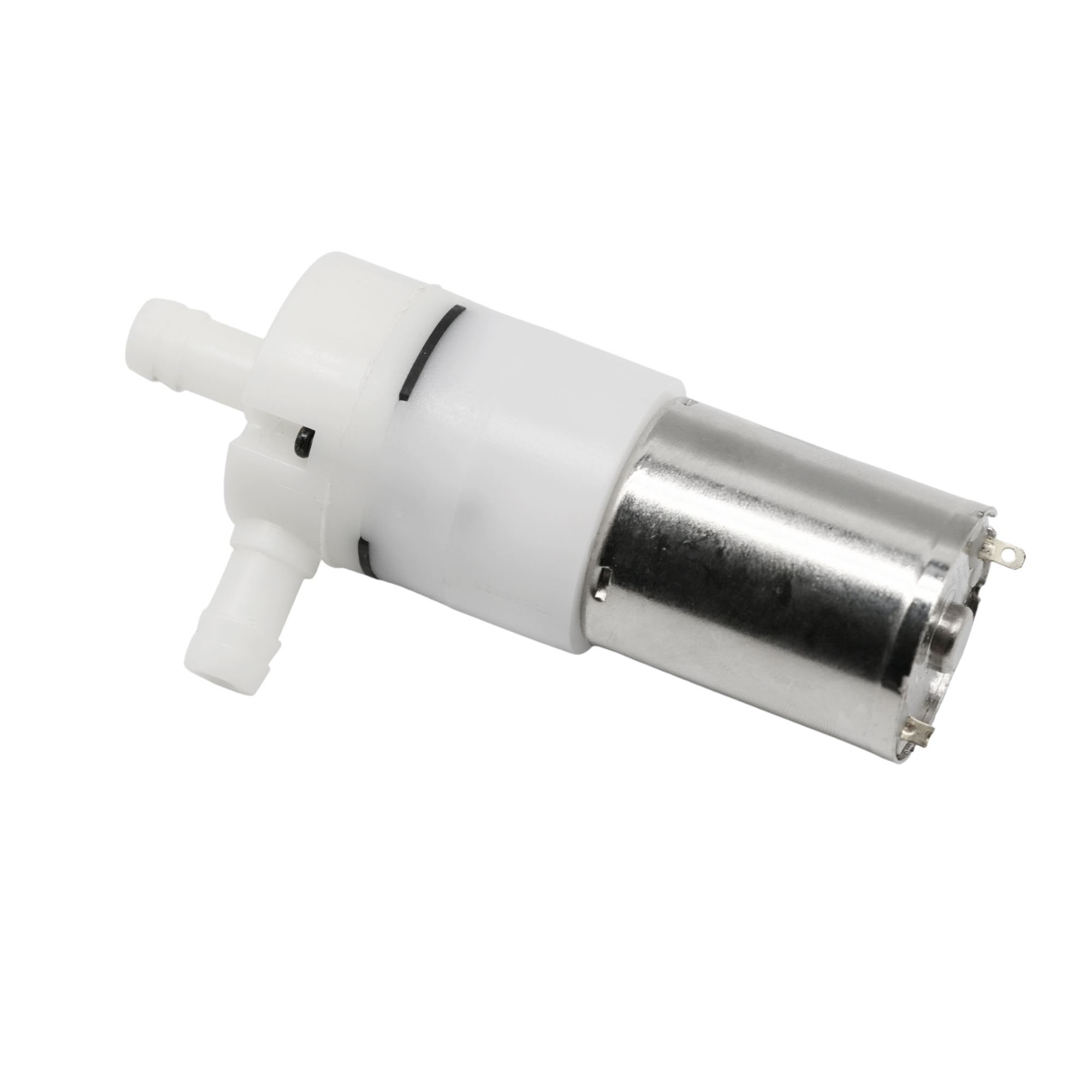

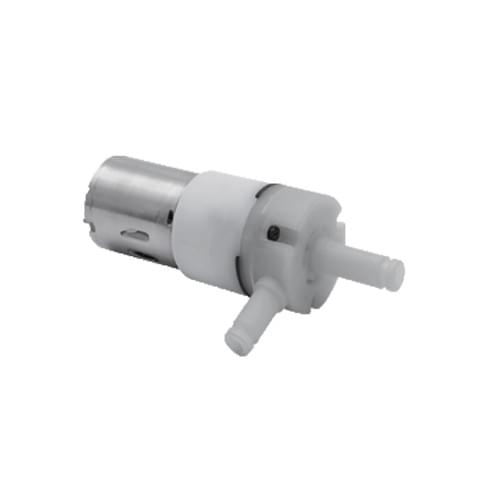

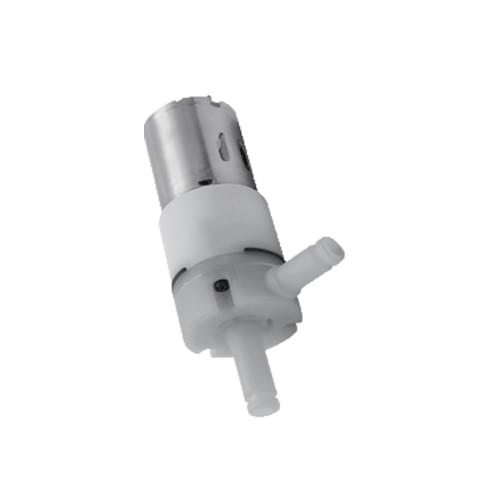

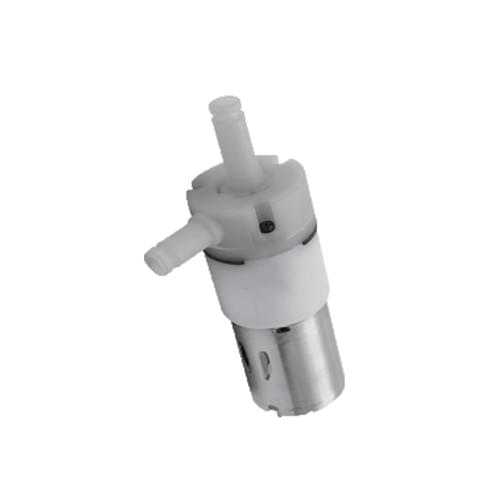

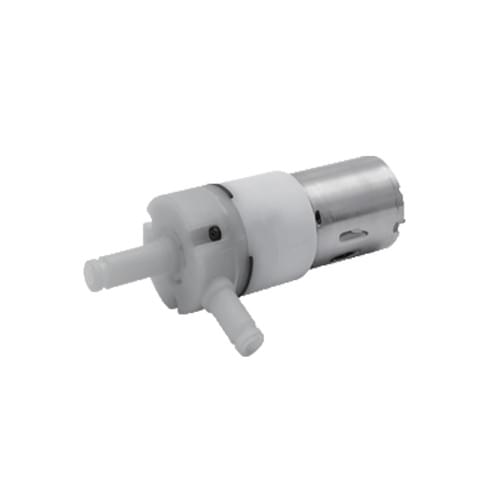

12V 24V DC brushless Food grade Water Pump For Drinking Dispenser Water purifier pump
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSSP370-XE
Place of Origin: Guangdong, China
Application: Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Utilities, Raw Water Intake, Wastewater Transport and Flood Control, Water Distribution, Water Treatment Solutions
Horsepower: Desun Standard
Power Source: Electric
Pressure: >=200Kpa
Structure: Diaphragm Pump
Cable Length: Desun Standard
Outlet Size: dia 8mm
Voltage: 3V - 24V
Power: 3.6W
Theory: Mini Air And Water Pump
Lifetime: Over 500 hours
Noise: ≤65dB( 30cm away)
Workig temp: ≤100℃
Duty work: Work a whole day continously
Raw materail: ABS + aluminum
Suction Lift: >=5m
Standard or Nonstandard: Standard or OEM
Certification 2: RoHS
Certification: ce
DSSP370-XE Mini Air And Water Pump
Features
1. Life: Expected life span is about 1 year.
2. Low noise: ≤65dB, far from 1 meter distance.
3. Working conditions: Applying to indoor and outdoor under temperature 40 deg C.
4. Working temperature: Within 90℃ ~ 100℃. Have suction function. can run continuously.
5. It can be powered directly by a Solar panel, DC electric source, or battery.
Technical parameters
Product name | Mini Air And Water Pump |
Model | DSSP370-XE |
Working voltage | 3~24V（DC） |
Rated Current | 150mA - 1200mA |
Max. flowrate | 0.3 - 1.2L/min |
Max. head | 》= 5M |
Max. Suction | 》= 5M |
Working temp. | ≤100 ℃ |
Material | PPE |
Noise | ≤ 65dB |
Lifetime | 500H |
Inlet diameter | Dia 8mm |
Outlet diameter | Dia 8mm |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.

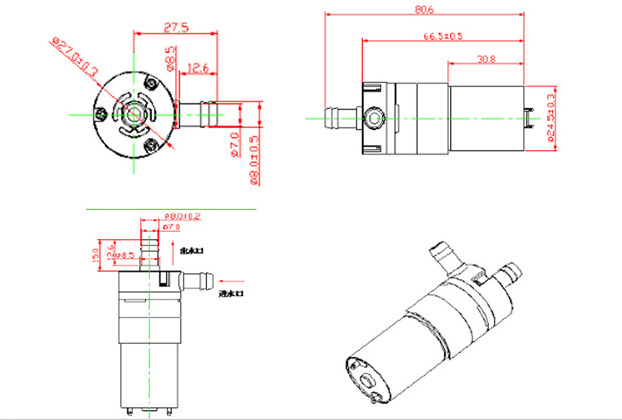

Dimensional drawing and working curve diagram
Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc...
We supply Full Customization Service, please contact us for the details.
Coffee Machine
Water Dispenser
Beverage Machine
