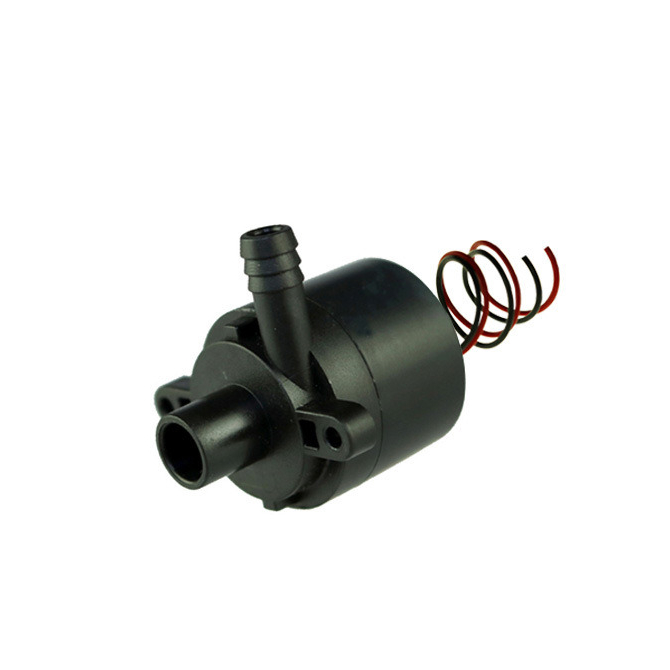

12v 24v Brushless dc Mini Centrifugal Electric smart water pump For Pet Fountain
Product name: Water pump
Model: DS2504
Working voltage: 3~12V(DC)
Max. flowrate: 2L/min
Max. head: 2M
Working temp : ≤70 ℃
Material: ABS
Water proof level: IP68
Noise: ≤30dB
Lifetime: 20000H
Inlet diameter: 9.7mm
Outlet diameter: 7mm
更多详情
DS2504 CENTRIFUGAL WATER PUMP
Features
1. Small size, lightweight, easy to install;
2. Epoxy potting, IP68 waterproof rating;
3. Brushless motor, long life span;
4. Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar pwered;
5. Submersible (water temperature ≤50)
6. High temperature customized (≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Dimensional drawing and working curve diagram
