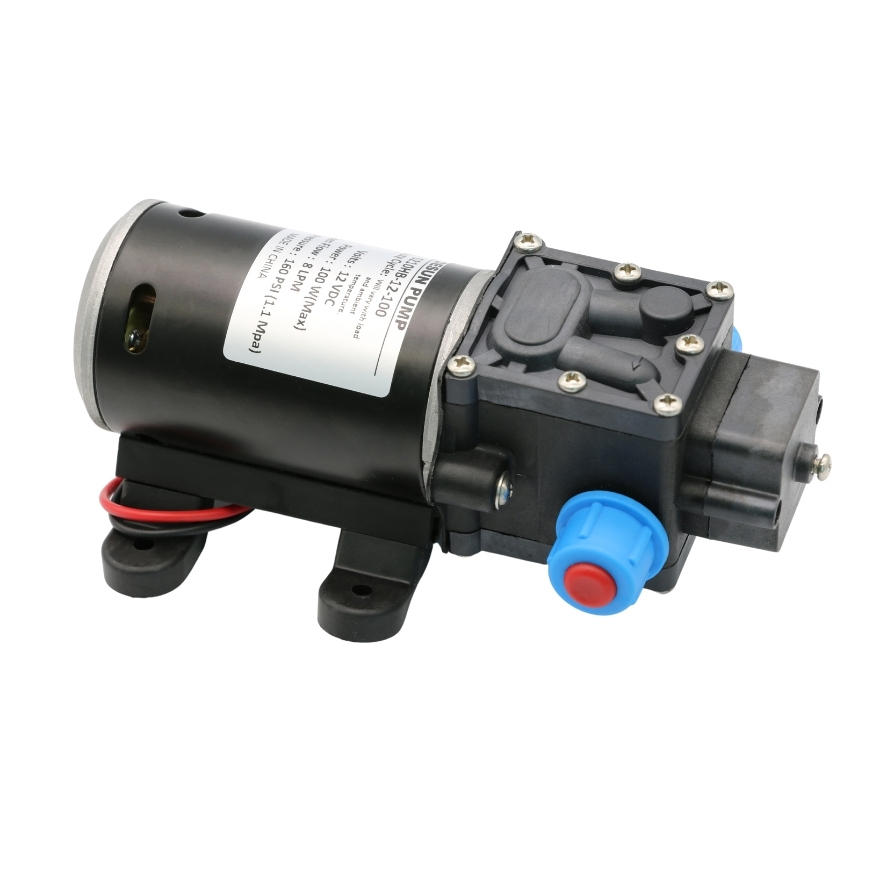

      100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump
      • 100W 8L/MIN High pressure micro dc self-priming diaphragm pump

      100W 8L/MIN High pressure micro dc self-priming diaphragm pump

      Model Number:5210HB-12-100, 5210HB-24-100
      Customized support:OEM, ODM
      Brand Name:Desun
      Place of Origin:Guangdong, China
      Application:Other, Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining, Water Distribution, Water Treatment Solutions
      Horsepower:100w
      Power Source:Electric
      Pressure:160psi
      Structure:Diaphragm Pump
      Cable Length:30cm
      Outlet Size:M18
      Voltage:12V/24V
      Power:100W
      Product name:Micro dc electric water pump
      Theory:Diaphragm Pumps
      Standard or Nonstandard:Standard
      Lifetime:2000HOURS
      Workig temp.:less than 60℃
      Suction lift:1.5M
      Weight:1.06kg
      Heavy duty work:Work a whole day continously
      Certification:RoHS,ce
      更多详情

      5210HB-12-100&5210HB-24-100 DIAPHRAGM SELF-PRIMING WATER PUMP

      MODEL EXPLANATION

      Take "5210HA-12-100" as an example, 5210 represents the motor model, H represents the pump's head type, A represents the interface type, 12 represents the voltage, and 100 represents the power.

      PUMP'S HEAD TYPE EXPLANATION



      TYPE Y INTELLIGENT PUMP HEAD

      Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor; The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.

      Application scope:

      Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...



      TYPE H REFLUX PUMP HEAD

      Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability. Application scope:

      High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.

      INTERFACE TYPE EXPLANATION

      The pump's head type and the interface can be freely replaced, please contact us for the details.

      RELATED MODELS TECHNICAL PARAMETERS

      Model

      Volts

      Max Power

      Max Pressure

      Working Pressure

      Open Flow

      Suction Lift

      Head

      Gunshot

      5210YA-12-80

      (YH YB HA HB HD

      same as it)

      12V

      80W

      10KG

      6KG

      6L/min

      1.5M

      60M

      8M

      5210YA-24-80

      (YH YB HA HB HD

      same as it)

      24V

      80W

      10KG

      6KG

      6L/min

      1.5M

      60M

      8M

      5210YA-12-100

      (YB YD HA HB HD

      same as it)

      12V

      100W

      11KG

      7KG

      8L/min

      1.5M

      70M

      9M

      5210YA-24-100

      (YB YD HA HB HD

      same as it)

      24V

      100W

      11KG

      7KG

      8L/min

      1.5M

      70M

      9M

      5210YA-48-100

      (HD same as it)

      48V

      100W

      11KG

      7KG

      8L/min

      1.5M

      70M

      9M

      5210HD-12-100F

      (HB HA YD YA YB

      same as it)

      12V

      100W

      11KG

      7KG

      8L/min

      1.5M

      70M

      9M

      5210HD-24-100F

      (HB HA YD YA YB

      same as it)

      24V

      100W

      11KG

      7KG

      8L/min

      1.5M

      70M

      9M

      5210YD-12-120F

      (HD same as it)

      12V

      120W

      13KG

      8KG

      10L/min

      1.5M

      80M

      10M

      5210YD-24-120F

      (HD same as it)

      24V

      120W

      13KG

      8KG

      10L/min

      1.5M

      80M

      10M

      * The technical parameters above are only a few for your reference. * All models can be equipped with adapters. * All models can be powered by solar power, DC power, solar panels, batteries, etc.

      * You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.

      ATTENTION

      * Do not use water or dirty water whose temperature exceeds 60℃ (silt in dirty water will cause irreversible damage to the pump). * Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use. * Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time. * Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump). * It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump). * The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged. * Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters

      some application scope for reference, not all.

      Mainly used for High - pressure fog - making, long - distance or mountain road trucks brake water cooling, pumping wine, milk, soy milk, drinking, cooking oil, and other liquids, Pumping gasoline, diesel, viscous liquids; Spray irrigation and water spraying, cleaning car, air contioner, vacuum cleaner, water purifier, etc...

      We supply Full Customization Service, please contact us for the details.
